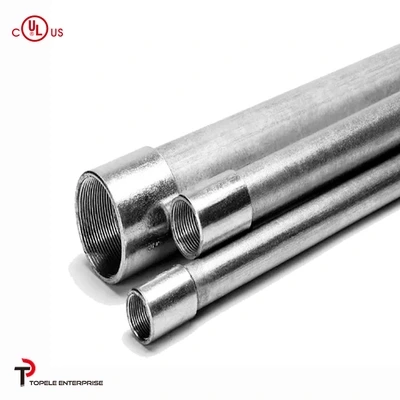

1/2-in IMC Conduit And Fittings Galvanised steel cable conduit 10 foot length

Certification
China TOPELE ENTERPRISE CO.,LTD certification
China TOPELE ENTERPRISE CO.,LTD certification
Dear Mr Jeff, thanks so much for your support on products quality and competitive price to help us expand our local marketing during the past 3 years.

—— John Grady

dear Mr.Jeff, we are so happy to choose TOPELE as our business supplier during the past 5 years because of your company powerful service & solutions.

—— Jonnathan

I'm Online Chat Now

1/2-in IMC Conduit And Fittings Galvanised steel cable conduit 10 foot length

1/2-in  IMC Conduit And Fittings Galvanised steel cable conduit  10 foot length
1/2-in  IMC Conduit And Fittings Galvanised steel cable conduit  10 foot length

Large Image :  1/2-in IMC Conduit And Fittings Galvanised steel cable conduit 10 foot length

Product Details:
Place of Origin: Zhejiang ,china
Brand Name: TOPELE
Certification: ISO CERTIFICATE
Model Number: IMC STEEL CONDUIT
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: negotiable
Packaging Details: Small bundles with white plastic bag
Delivery Time: 20 days for one 20ft container
Payment Terms: TT/LC AT SIGHT
Supply Ability: 200 tons one month
Detailed Product Description
Material: Galvanised Steel Thickness: 1.5 - 3.81mm
Application: Electrical Tubing Length: 3.05m
Size: 1/2" ~ 4"
High Light:

imc conduit

,

explosion proof conduit fittings

1/2-in IMC Conduit And Fittings Galvanised steel cable conduit 10 foot length



Description:

ANSI C80.1 Hot-dipped Galvanized RMC/RSC Conduit

with a integral coupling and a protection cap

TOPELE BRAND RMC/RSC Conduit

  • Protect insulated electrical conductors and cables
  • Galvanized steel construction provides shielding from magnetic fields and protection from impact damage and crushing
  • Electroplated couplings prevent zinc build-up
  • Designed for use with threaded connections
  • Meets CSA standard
  • Description: 1/2"-4" IMC CONDUIT X 10'
  • Brand Name: TOPELE
  • Color Family : Metallics
  • Conduit type : Metallic
  • Electrical Product Type : Conduit
  • Flexible : No
  • Length : 10 ft.
  • Material : Galvanized steel / Hot-dipped Galvanized
  • Size: from 1/2" to 6 "





Applications:



TOPELE Rigid steel conduit is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This Rigid steel conduit is made of Pre-galvanized steel and has an organic coating inside.

Rigid steel conduit provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields and features electroplated couplings to resist build up of zinc on the threads.





Specifications:



nominal diameter

external diameter

thickness of wall

length

packing

weight/unit(kg)

RIGID STEEL  CONDUIT(RIGID METAL CONDUIT)

1/2"

21.34mm

2.64mm

3.05

15pcs/bundle

3.71

3/4"

26.67mm

2.72mm

3.05

10pcs/bundle

4.90

1"

33.4mm

3.2mm

3.05

8pcs/bundle

7.27

1-1/4"

42.16mm

3.38mm

3.05

5pcs/bundle

9.86

1-1/2"

48.26mm

3.51mm

3.05

5pcs/bundle

11.81

2"

60.33mm

3.71mm

3.05

4pcs/bundle

15.80

2-1/2"

73.03mm

4.9mm

3.05

1pc

25.11

3"

88.9mm

5.21mm

3.05

1pc

32.79

3-1/2"

101.6mm

5.46mm

3.05

1pc

39.48

4"

114.3mm

5.72mm

3.05

1pc

46.71



1/2-in  IMC Conduit And Fittings Galvanised steel cable conduit  10 foot length 0



Competitive Advantage:



RMC/RSC Conduit

+Quick Delivery: 15days for one 20ft container.
+Competitive Price

+ Good Quality: ISO certificate approval

+Best Service: fast delivery, strong package, good price, timely and effective communication

+Powerful Solution: fast and effective solution to problem
