Product Details:
Payment & Shipping Terms:
|
| Material: | Galvanized Steel | Size: | 4"x4"x1-1/2", 4"x4"x1-7/8", 4"x4"x2-1/8" |
|---|---|---|---|
| Thickness: | 0.6mm-1.6mm | Shape: | Square |
| Brand Name: | Metal Double Box | Export Markets: | North America, South America, Mid East |
| Serivce: | OEM Or ODM Is Availble | ||
| High Light: | octagon box cover,outlet box covers |
||

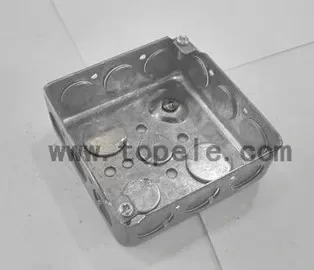

TOPELE 52151 / 52161 / 52171 Galvanized Steel Square Electrical Outlet Box
Description:
TOPELE 4"x4" Electrical Conduit Square Box
•Type: Drawn
•Depth: 1-1/2" or 1-7/8" or 2-1/8"
•For surface-mounted wiring
•Made of Pre-Galvanized steel
•Thickness: 0.6mm, 0.8mm,1.0mm,1.2mm,1.5mm,1.6mm
•Rectangular box and Octagonal box are also available
•Dimension
4''*4''*1-1/2''Deep 1/2'',3/4'',1/2"&3/4"
4"*4"*1-7/8"Deep 1/2'',3/4'',1/2"&3/4"
4''*4''*2-1/8''Deep 1/2'',3/4'',1/2"&3/4"
Applications:
TOPELE ELECTRICAL SQUARE OUTLET BOX
These 4” square boxes with conduit knockouts are installed in walls or ceilings for lighting fixtures, switches, receptacles or other outlet devices. Square boxes are used to bring power to a number of electrical devices where mul-tiple conductor runs are split in two or more directions.
Field Names: 4S Box, 1900 box, 1900 electrical box, 1900 junction box, conduit box, J-box, concentric box, conduit junction box, outlet box, drywall mud box, standard 1900 box, square conduit box.
Specifications:
TOPELE square conduit box
| CAT# | KO. SIZE | DESCRIPTION | THICKNESS |
| 1-1/2'' Deep | |||
| TP52151-1/2” | 1/2'' | Galvanized Steel | 0.6/0.8/1.0/1.2/1.5/1.6mm |
| TP52151-3/4” | 3/4'' | Galvanized Steel | 0.6/0.8/1.0/1.2/1.5/1.6mm |
| TP52151-1/2”&3/4” | 1/2''&3/4'' | Galvanized Steel | 0.6/0.8/1.0/1.2/1.5/1.6mm |
| 1-7/8'' Deep | |||
| TP52161-1/2” | 1/2'' | Galvanized Steel | 0.6/0.8/1.0/1.2/1.5/1.6mm |
| TP52161-3/4” | 3/4'' | Galvanized Steel | 0.6/0.8/1.0/1.2/1.5/1.6mm |
| TP52161-1/2”&3/4” | 1/2''&3/4'' | Galvanized Steel | 0.6/0.8/1.0/1.2/1.5/1.6mm |
| 2-1/8'' Deep | |||
| TP52171-1/2” | 1/2'' | Galvanized Steel | 0.6/0.8/1.0/1.2/1.5/1.6mm |
| TP52171-3/4” | 3/4'' | Galvanized Steel | 0.6/0.8/1.0/1.2/1.5/1.6mm |
| TP52171-1/2”&3/4” | 1/2''&3/4'' | Galvanized Steel | 0.6/0.8/1.0/1.2/1.5/1.6mm |
Competitive Advantage:
TOPELE 4"x4" Electrical Conduit Square Box
TOPELE 4” Boxes can be surface or flush mounted when multidirectional conduit runs are necessary, These boxes include a raised ground provision.
1. The samples you needed can be sent by air free of charge.
2. OEM transactions may meet your different requirements.
3. If you have any question during application, please feel free to contact us anytime,we will give your best solution ASAP.
4. If you need ,we will make new product mould to meet your customized products.
5. Welcome to our country,more welcome to visit our company and factory.
6. Hoping your sincere join.
