| Brand Name: | TOPELE | Model Number: | CEC |
|---|---|---|---|
| Size: | 1/2"-2" | Material: | Aluminum |
| Connection: | Female | Standard: | UL Standard 514B |
| High Light: | explosion proof conduit fittings,electrical conduits and fittings |
||
PDF Catalogue:TOPELE Service Entrance Cap.pdf
Description:

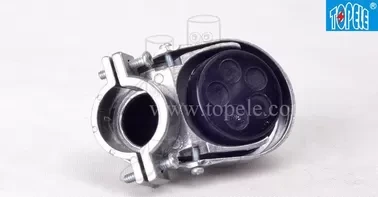

Service Entrance Cap-clamp type
Material: Aluminum
Type: Clamp
Size: 1/2 inch—2inch
Application: Clamp type for EMT conduits and threaded type for IMC conduits
Field Names:
Service entrance caps, weather heads, service entrance heads, service entrance kits, cobra heads, weather caps, utility service caps, meter heads, service heads.
Usage:
These service entrance caps attach to the end of EMT or IMC conduits that are being used to bring over-head power to buildings or homes. Their clamp-on design and large insulator yoke allows the cables from meters to be hung outside of service heads without the fear of abrasion while waiting for the utility power connections. Available sizes are 1/2”-4”.
Specifications:
| CEC-50A | 1/2" |
| CEC-75A | 3/4" |
| CEC-100A | 1" |
| CEC-125A | 1-1/4" |
| CEC-150A | 1-1/2" |
| CEC-200A | 2" |
Competitive Advantage:
TOPELE’S labor-saving, clamp-on design eliminates the need to screw on a threaded service head. Two screw clamping
action bites tightly on the threaded rigid conduits to ensure they will remain in place during severe/harsh
weather.
