Product Details:
Payment & Shipping Terms:
|
| Brand Name: | TOPELE | Model Number: | CN |
|---|---|---|---|
| Size: | 1/2"-12" | Material: | STEEL |
| Standard: | UL Standard 514B | ||
| High Light: | imc conduit,explosion proof conduit fittings |
||

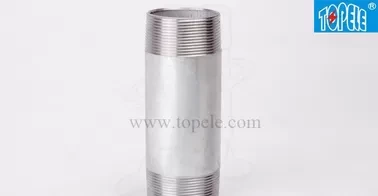

All Size IMC Conduit And Fittings Electrical Rigid Metal Conduit Nipple
1.Name: Electrical Galvanized Rigid Conduit Nipple
2.Standards: ANSI C80.1
3.Size: 1/2"-12"
4.Length: Standard order length or as required
5.Zinc coating: Close:Electro-galvanized
6.Thread: Precise and clear straight tapper NPT threaded BY CNC
7.Type: Full threaded nipple, Half threaded nipple
8.Standard Package: Carton
Field Names: Close nipples, pipe nipples, pipe canopy, fixture stems, fixture nipples,Rigid Conduit Nipple , conduit nipple
Application:
These rigid conduit nipples are used with threaded rigid and IMC conduits to connect fixtures to electrical boxes and enclosures or are used with locknuts to connect two junction boxes.
Specifications:
| Cat # | Trade Size |
| CN-50150 | 1/2"_1-1/2'' |
| CN-50200 | 1/2"_2'' |
| CN-50300 | 1/2''_3" |
| CN-50400 | 1/2''_4" |
| CN-50600 | 1/2''_6'' |
| CN-50800 | 1/2''_ 8'' |
| CN-501000 | 1/2''_10'' |
| CN-501200 | 1/2''_12'' |
| CN-75150 | 3/4''_1-1/2" |
| CN-75200 | 3/4''_2" |
| CN-75300 |
3/4''_3"
|
| CN-75400 | 3/4''_4" |
| CN-75600 | 3/4''_6" |
| CN-75800 | 3/4''_8" |
| CN-751000 |
3/4''_10" |
| CN-751200 | 3/4''_12" |
| CN-100200 | 1_2'' |
| CN-100300 | 1_3'' |
| CN-100400 | 1_4'' |
| CN-100600 | 1_6'' |
| CN-100800 | 1_8'' |
| CN-1001000 | 1_10'' |
| CN-1001200 | 1_12'' |
| CN-125200 | 1-1/4''_2'' |
| CN-125300 | 1-1/4''_3'' |
| CN-125400 | 1-1/4''_4'' |
| CN-125600 | 1-1/4''_6'' |
| CN-125800 | 1-1/4''_8'' |
| CN-1251000 | 1-1/4''_10'' |
| CN-1251200 | 1-1/4''_12'' |
| CN-150200 | 1-1/2''_2'' |
| CN-150300 | 1-1/2''_3'' |
| CN-150400 | 1-1/2''_4'' |
| CN-150600 | 1-1/2''_6'' |
| CN-150800 | 1-1/2''_8'' |
| CN-1501000 | 1-1/2''_10'' |
| CN-1501200 | 1-1/2''_12'' |
| CN-200250 | 2''_2-1/2'' |
| CN-200300 | 2''_3'' |
| CN-200400 | 2''_4'' |
| CN-200600 | 2''_6'' |
| CN-200800 | 2''_8'' |
| CN-2001000 | 2''_10'' |
| CN-2001200 | 2''_12'' |
Competitive Advantage:
Quality: One year guarantee in quality
Fast shipment: Our company is close to ningbo and shanghai port, which make shipment fast.
