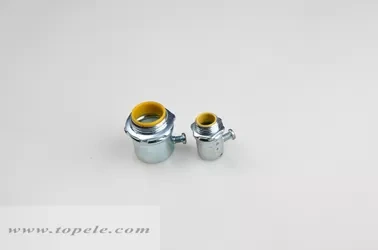

Indoor Steel EMT Conduit And Fittings Emt Connector With Yellow Gasket

China Indoor Steel EMT Conduit And Fittings Emt Connector With Yellow Gasket supplier
Indoor Steel EMT Conduit And Fittings Emt Connector With Yellow Gasket supplier Indoor Steel EMT Conduit And Fittings Emt Connector With Yellow Gasket supplier Indoor Steel EMT Conduit And Fittings Emt Connector With Yellow Gasket supplier

Large Image :  Indoor Steel EMT Conduit And Fittings Emt Connector With Yellow Gasket

Product Details:

Place of Origin: Zhejiang ,china
Brand Name: TOPELE
Certification: ISO CERTIFICATE
Model Number: SSCN

Payment & Shipping Terms:

Minimum Order Quantity: 500PCS
Price: negotiable
Packaging Details: Small Plastic bags+carton box, or inner box+carton box+wooden pallet
Delivery Time: 30days, depend on the final order quantity.
Payment Terms: TT/ LC at sight
Supply Ability: 200,000,00pcs per month
Contact Now
Detailed Product Description
Product Name: Steel EMT Connector With Yellow Gasket Material: Steel / Zinc Electroplated
Fitting Type: Connector Indoor/Outdoor: Indoor
Size: 0.5 Inch-4 Inch Federal Spec: W-F-408E



Steel EMT connector with yellow gasket /EMT Conduit And Fittings

Description:


EMT steel Connector

TOPELE steel emt connectors are used to bond EMT conduit to electrical junction boxes or enclosures. TOPELE EMT steel connectors provide concrete tight connections when taped and properly secured with the included locknut, and are rated for electrical applications above 600 volts. Their heavy gauge steel construction maintains mechanical protection and solid grounding of the conduit to the designated electrical junction box or enclosure. Additionally, EMT conduit connectors are pure steel and zinc plated for excellent corrosion protection.




Features:


Heavy steel walls
Concretetight when taped
Pre-set/ Pre-staked set screws
Male hub threads NPT
Available with insulated threat
Three-way combination screws for flat-blade, philips and square head screwsdrives 1/2" through 2"
Slotted hexhead screw 2-1/2" through 4"
2-1/2" through  4" rated for threadless aluminum RMC and steel IMC.
Material/Finish: Steel /Zinc electroplated
CSA standard:C22.2 No. 18
NEMA: FB-1
Federal Spec: W-F-408E





Applications:


EMT steel connector: Joins steel EMT conduit to Electrical box and enclosure
•Connect & effectively bond EMT conduit to steel outlet boxes, load centers & other metal enclosures
•May be used indoors and in concrete-tight applications when taped
•Body and locknut made with die-cast zinc alloy
•Set screw made with zinc-plated steel
•Tri-Drive screw head design for use with Phillips, slotted and square screwdrivers
•Screw thread is designed to not vibrate loose
•Reversible locknut designed to cut through protective coatings on boxes & enclosures
•Application type : EMT
•Electrical Product Type : Standard Fitting
•Fitting type : Connector
•Indoor/Outdoor : Indoor
•Paintable/Stainable : No
•Trade Size (in.) : [1/2"] [3/4"] [1"] [1-1/4"] [1-1/2"] [2"][2-1/2"] [3"] [4"]






Specifications:

SSCN-50/S

1/2"

Set-Screw Type

SSCN-75/S

3/4"

Set-Screw Type

SSCN-100/S

1"

Set-Screw Type

SSCN-125/S

1-1/4"

Set-Screw Type

SSCN-150/S

1-1/2"

Set-Screw Type

SSCN-200/S

2"

Set-Screw Type

SSCN-250/S

2-1/2"

Set-Screw Type

SSCN-300/S

3"

Set-Screw Type

SSCN-400/S

4"

Set-Screw Type

 Indoor Steel EMT Conduit And Fittings Emt Connector With Yellow Gasket




Competitive Advantage:


+Quick Delivery: within 30 days for one 20ft container.
+Competitive Price
+ Good Quality: ISO certificate approval
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
