Product Details:
Payment & Shipping Terms:
|
Product Name: | Chile Electonic Galvanized 20mm 25mm Compression Emt Conduit Elbow | Material: | Pre-Galvanized Steel/Electronic Galvanized |
---|---|---|---|
Application: | Electrical Raceway | Type: | 90°/45°EMT Elbows |
Size: | 20MM 25MM 32MM | OEM: | YES |
Color: | Silvery | Head Code: | Round |
Shape: | Equal | ||
High Light: | liquid tight flexible conduit,electrical conduits and fittings |

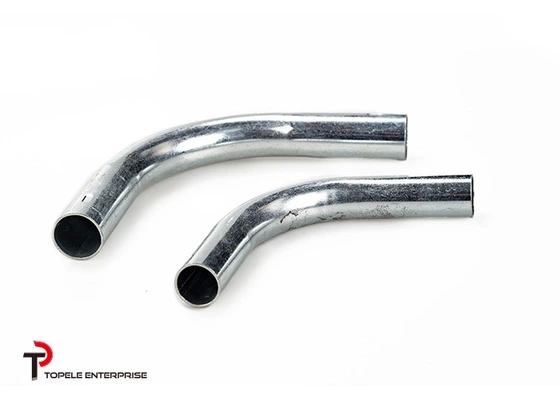

OEM Galvanized Compression Emt Conduit Elbow , Electrical Conduit Elbow
PDF Catalogue:TOPELE UL EMT Elbow.pdf
Description:
The EMT bends is to connect the Chile EMT pipe to change the way of the cable route.Topele bent EMT elbows are used to connect steel EMT conduits together allowing either 45 or 90 degree bends. saving time and material costs. EMT conduit elbows are made with the utmost precision to ensure a high quality raceway along the entire run. Our EMT Elbows are best in class and are produced with an emphasis on quality and consistency. The tube will never be flattened by the bending process and the galvanizing will be completely intact. Wire pulling is effortless with our incredibly smooth galvanizing and there are absolutely no sharp edges on any surfaces that could snag, scratch or break the wiring as it is being pulled through the raceway
Application:
Used as the fittings for conduit.
Customers specifications are available.
This 90 degree EMT elbows are used to connect two EMT conduits together at wall corner.
Specifications for 90 degree elbows:
1)20mm to 50mm
2) material : Steel
3)Finish:pre-galvanized/ electonic galvanized
cat # | size | Mini Radius (mm) | Straight Length (mm) | ||
EELB50 |
20mm | 102 | 43 | ||
EELB75 |
25mm |
114 | 55 | ||
EELB100 |
32mm |
146 | 60 | ||
EELB125 |
40mm | 184 | 70 | ||
EELB150 |
50mm | 210 | 80 | ||
|
Competitive Advantage:
Excellent mechanical protection for conductions.
Compatible with all types of building materials.
High strength ductile steel for long life and .
System grounding and electromagnetic interference shielding.
Durable,strong and suitable for the harshest environmental conditions.
