Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Thickness: | 1.07-2.11mm |
|---|---|---|---|
| Finish: | With/without Oxidation | Standard: | UL797 ANSI S80.3 |
| High Light: | explosion proof conduit fittings,electrical conduits and fittings |
||

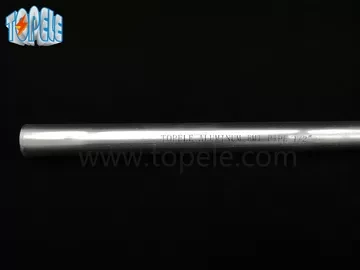

UL 797 Standard Aluminum Electrical Metallic Tubing (EMT) With/Without Oxidation
PDF Catalogue: TOPELE Aluminum EMT Conduit.pdf
(1)Surface Treatment: Pre-galvanized, Hot-dip galvanized(HDG)
(2)Size: 1/2" to 4"
(3)Application: EMT Conduit can be used as structure pipe for through electrical wiring
(4)Feature: Surface treatment is smooth, have good resistant to corrosion,provide different thickness or length.
(5)Pre-galvanized inside and outside.
(6)Each meter printed with size,logo & standard.
(7)Price: Aluminum EMT is 30% lower than Steel.
(8)Weight: Aluminum EMT is 70% lighter than Steel.
(9)Installation: Aluminum EMT is 50% Less than Steel.
(10)Surface Treatment: Aluminum EMT can be used with/without Oxidation, Steel must be galvanized, Poisonous and Pollutional.
Specification:
| Size | Metric Designator |
Nominal Outside | Nominal Wall Thickness |
Approcx.Wt.Per 100 Ft.(30.5M) |
Qty.In Master Bundle |
||||||
| in | mm | in | mm | ib | kg | ft. | m | ||||
| 1/2'' | 16 | 0.706 | 17.9 | 0.042 | 1.07 | 10.3 | 4.7 | 7000 | 2135 | ||
| 3/4'' | 21 | 0.922 | 23.4 | 0.049 | 1.25 | 15.8 | 7.2 | 5000 | 1525 | ||
| 1'' | 27 | 1.163 | 29.5 | 0.057 | 1.45 | 23.3 | 10.6 | 3000 | 915 | ||
| 1-1/4'' | 35 | 1.51 | 38.4 | 0.065 | 1.65 | 34.7 | 15.8 | 2000 | 610 | ||
| 1-1/2'' | 41 | 1.74 | 44.2 | 0.065 | 1.65 | 40.2 | 18.3 | 1500 | 457.5 | ||
| 2'' | 53 | 2.197 | 55.8 | 0.065 | 1.65 | 51.2 | 23.3 | 1200 | 366 | ||
| 2-1/2'' | 63 | 2.875 | 73 | 0.072 | 1.83 | 74.6 | 33.9 | 610 | 186.1 | ||
| 3'' | 78 | 3.5 | 88.9 | 0.072 | 1.83 | 91.1 | 41.4 | 510 | 155.6 | ||
| 3-1/2'' | 91 | 4 | 101.6 | 0.083 | 2.11 | 120.1 | 54.6 | 370 | 112.9 | ||
| 4'' | 103 | 4.5 | 114.3 | 0.083 | 2.11 | 135.5 | 61.6 | 300 | 91.5 | ||
Competitive Advantage:
+Quick Delivery: within 30 days for one 20ft container.
+Competitive Price
+ Good Quality: ISO certificate approval
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
