Branch 2 Way U Malleable Iron Box BS4568 Conduit Fitting Hot Dip Galvanized

Certification
China TOPELE ENTERPRISE CO.,LTD certification
China TOPELE ENTERPRISE CO.,LTD certification
Dear Mr Jeff, thanks so much for your support on products quality and competitive price to help us expand our local marketing during the past 3 years.

—— John Grady

dear Mr.Jeff, we are so happy to choose TOPELE as our business supplier during the past 5 years because of your company powerful service & solutions.

—— Jonnathan

I'm Online Chat Now

Branch 2 Way U Malleable Iron Box BS4568 Conduit Fitting Hot Dip Galvanized

Branch 2 Way U Malleable Iron Box BS4568 Conduit Fitting Hot Dip Galvanized
Branch 2 Way U Malleable Iron Box BS4568 Conduit Fitting Hot Dip Galvanized Branch 2 Way U Malleable Iron Box BS4568 Conduit Fitting Hot Dip Galvanized Branch 2 Way U Malleable Iron Box BS4568 Conduit Fitting Hot Dip Galvanized

Large Image :  Branch 2 Way U Malleable Iron Box BS4568 Conduit Fitting Hot Dip Galvanized

Product Details:
Place of Origin: Zhejiang ,china
Brand Name: TOPELE
Model Number: TP101--128
Payment & Shipping Terms:
Minimum Order Quantity: 1000 PCS
Price: negotiable
Packaging Details: Carton
Delivery Time: 20 days
Payment Terms: TT/LC at sight
Supply Ability: 50000pcs per day
Detailed Product Description
Material: Malleable Iron / Aluminum Size: 20mm 25mm 32mm
Model: Malleable Iron Box Shape: Circular
Standard: BS Finish: Hot Dip Galvanized
Application: Electrical Contrustion Product Name: BS 4568 Circular Junction Box
High Light:

20mm galvanised conduit

,

galvanized steel pipe



20mm 25mm branch 2 way U malleable iron box BS 4568 conduit fitting



Description:

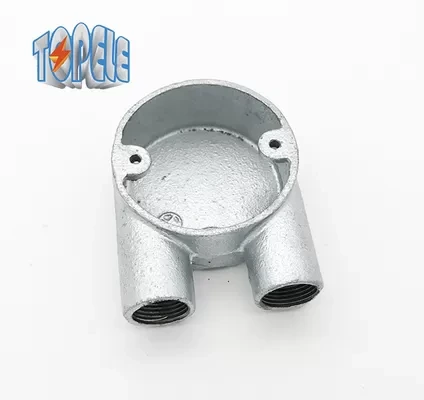

20mm 25mm branch 2 way U malleable iron box BS 4568 conduit fitting



Marking: TOPELE, as customer request, can open mold as customer own brand.

Material: Malleable Iron

Finish: Hot-dip Galvanized, Aluminum

Standard: BS4568/BS31

Size: 20mm, 25mm, 3/4”, 1”

60.3mm Internal Diameter x 25.4mm Deep Tapped M4 in mm sizes and 2BA in imperial sizes of 50.3mm with tapped hole in base for earthing screw.

Branch 2 Way U Malleable Iron Box BS4568 Conduit Fitting Hot Dip Galvanized 0







More BS conduit Fittings



Branch 2 Way U Malleable Iron Box BS4568 Conduit Fitting Hot Dip Galvanized 1



BS31 Alumnum fitting- 3/4" , 1" aluminum circular box





Note:

1.With tapped hole in base for earthing screw.

2.Supplied without covers or fixing screws unless ordered.

3.Order 3/4" & 1" when using with BS31 Conduits.

4.Order 20mm,25mm when using with BS4568 Conduits.

5.BS31 boxes also available in cast Iron & finish galvanized coating.

6.Box Covers are available 1.0/1.2mm thickness, finish Hot-Dipped Galvanized;

7.Each box is supplied C/W one regulation Tap Earth Terminal Hole in base;

8.Small and large Circular Boxes available;

9.Deep pattern Boxes available;

10.Full range of Conduit Fittings(Saddles) available to suit different site needs;

11.Good range of other supporting Conduit Fittings available.







Applications:



20mm 25mm branch 2 way U malleable iron box BS 4568 conduit fitting

to protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction and provide access to conductors for maintenance and future system change.









Competitive Advantage:



20mm 25mm branch 2 way U malleable iron box BS 4568 conduit fitting

1.Price: Competitive&Reasonable
2.Quality: Quality assured in each process
3.Material:Zinc,Alum,Steel,Malleable
4.MOQ:Small orders acceptable
5.Delivery:In time
6.After service:Be responsible for each problem encountered and help to settle
