Product Details:
Payment & Shipping Terms:
|
| High Light: | 8'' swivel loop hanger,1/2'' swivel loop hanger,Galvanized Steel swivel loop hanger |
||
|---|---|---|---|

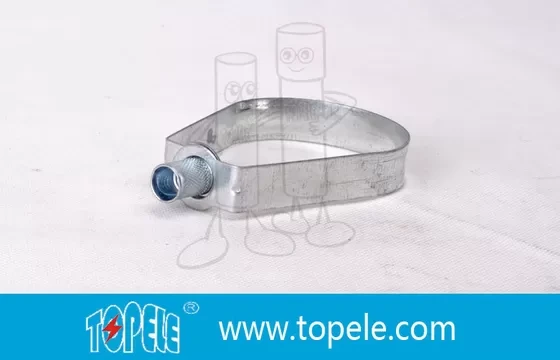

1/2''-8'' Swivel Loop Hanger for Pipe Support in Galvanized Steel
PDF Catalogue:Swivel Loop Hanger.pdf
1.Product Name: Swivel Loop Hanger
2.Standard: UL No.E489690
3.Tade Size : 3/8''-8''
4.Material : Carbon Steel
5.Finish: Pre Galvanized,Electro Galvanized Copper Plated,Colored Epoxy Plated
6. Usage:Use for all general purpose and fire protection lines.
Specification:
| Cat No. | Conduit Size | Road Size | A(mm) | B(mm) | Max Load | Width&Thick(mm) | |||
| IN | MM | IN | MM | LBD | KG | ||||
| TPBH-050 | 1/2'' | 21.34 | 3/8'' | M10 | 54.50 | 41.50 | 300 | 136 | 16X1.2 |
| TPBH-075 | 3/4'' | 26.67 | 3/8'' | M10 | 60.50 | 45.34 | 300 | 136 | 16X1.2 |
| TPBH-100 | 1'' | 33.40 | 3/8'' | M10 | 64.16 | 47.73 | 300 | 136 | 16X1.2 |
| TPBH-125 | 1-1/4'' | 42.16 | 3/8'' | M10 | 70.74 | 54.31 | 300 | 136 | 16X1.2 |
| TPBH-150 | 1-1/2'' | 48.26 | 3/8'' | M10 | 74.01 | 57.78 | 300 | 136 | 16X1.2 |
| TPBH-200 | 2'' | 60.33 | 3/8'' | M10 | 82.59 | 66.16 | 300 | 136 | 16X1.2 |
| TPBH-250 | 2-1/2'' | 73.03 | 3/8'' | M10 | 104.5 | 88.69 | 600 | 270 | 22X1.5 |
| TPBH-300 | 3'' | 88.90 | 3/8'' | M10 | 112.5 | 96.12 | 600 | 270 | 22X1.5 |
| TPBH-350 | 3-1/2'' | 101.6 | 3/8'' | M10 | 120.5 | 100.5 | 600 | 270 | 22X1.5 |
| TPBH-400 | 4'' | 114.3 | 3/8'' | M10 | 126.9 | 110.7 | 1000 | 453 | 22X1.5 |
| TPBH-500 | 5'' | 141.3 | 1/2'' | M12 | 145.5 | 135.7 | 1000 | 453 | 19X2.5 |
| TPBH-600 | 6'' | 168.3 | 1/2'' | M12 | 173.2 | 154.1 | 1200 | 544 | 19X2.5 |
| TPBH-800 | 8'' | 219.3 | 1/2'' | M12 | 211.5 | 192.4 | 1200 | 544 | 19X2.5 |
Competitive Advantage:
+Quick Delivery: within 30 days for one 20ft container.
+Competitive Price
+Good Quality: ISO certificate approval
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem.
