Product Details:
Payment & Shipping Terms:
|
| Type: | Flexible Fitting | Product Name: | Rigid Bushing-Malleable Iron |
|---|---|---|---|
| Size: | 1/2''-4'' | Color: | Grey |
| Strandard: | UL | ||
| High Light: | Malleable Iron rigid conduit bushing,Ground rigid conduit bushing,UL rigid conduit bushing |
||
| Product name | Insulation Grounding Bushing |
| Brand name | TOPELE |
| Material | Malleable Iron |
| Size | 1/2''-4'' |
| Origin Place | Zhejiang,China |
Product Details

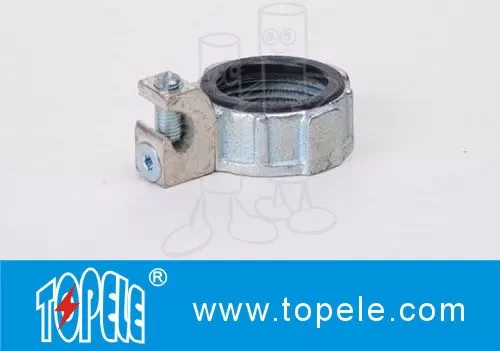

TOPELE rigid insulated grounding bushing with lay-in lug is designed to ground wires in threaded IMC conduit or Rigid Metal Conduit and terminate those steel conduits to a box or enclosure. The insulated throat provides a protection for wires or cables when pulling. The insulating liner material is rated at 150 degree Celsius.
The insulated throat grounding bushing in malleable iron construction ensures an excellent mechanical protection. This ground bushing is suitable for indoor and outdoor applications.
Conduit bushing is available in sizes from 1/2" up to 4".
| CAT# | SIZE |
| CB-50M/50MG | 1/2'' |
| CB-75M/75MG | 3/4'' |
| CB-100M/100MG | 1'' |
| CB-125M/125MG | 1-1/4'' |
| CB-150M/150MG | 1-1/2'' |
| CB-200M/200MG | 2'' |
| CB-250M/250MG | 2-1/2'' |
| CB-300M/300MG | 3'' |
| CB-350M/350MG | 3-1/2'' |
| CB-400M/400MG | 4'' |
Application:Used with locknut to terminate threaded Rigid conduit or IMC to enclosure.These threaded insulating bushings are usted on threaded Rigid or IMC conduits to prevent wires from being damaged by sharp edges on conduits.
Packaging Details:
1.Resealable/Sealed bag+carton box
2.Inside carton box+carton box
3.Plastic film
4.According to customer's requirements
