Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel | Surface Finish: | Electro-galvanized Or Hot Dip Galvanized |
|---|---|---|---|
| Technique: | Casting | Size: | 1/2 In - 6 In |
| Threads Type: | NPT Threads | Usage: | To Couple RIGID Conduit Or IMC Conduit |
| Packing: | Cartons | ||
| High Light: | explosion proof conduit fittings,imc conduit fittings |
||

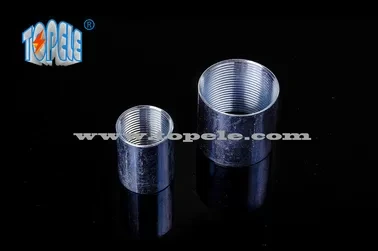

1/2 in Threaded Galvanized Steel Rigid Couplings for IMC / Rigid Conduit
Electrical Galvanized Steel Rigid Conduit Coupling:
1.Standards: ANSI C80.1
2.Trade size: 1/2"-4"
3.Zinc coating: Hot-dipped galvanized and then electro-galvanized ;OR electro-galvanized totally
4.Thread: Precise and clear straight NPS BY CNC.
Field Names: Rigid couplings, threaded rigid couplings, heavy wall couplings, threaded heavy wall couplings, rigid couplers, heavy wall couplers, threaded couplers.
Application:
These threaded couplings are used to join two ends of threaded rigid conduits or IMC conduits together. They can also be used with chase nipples and connectors to bond threaded conduits to electrical junction boxes or enclosures.
Material: Zinc Plated Steel
Specifications:
| cat # | size | length |
|
IC50 |
1/2" |
1.63 |
|
IC75 |
3/4" |
1.64 |
|
IC100 |
1" |
1.97 |
|
IC125 |
1-1/4" |
2.03 |
|
IC150 |
1-1/2" |
2.06 |
|
IC200 |
2" |
2.13 |
|
IC300 |
3" |
2.19 |
|
IC400 |
4" |
3.31 |
| IC500 | 5" | 3.95 |
| IC 600 | 6" | 4.25 |
engraved logo and best packing
