BS Electrical Boxes And Covers For Switches Depth 16mm / 25mm / 35mm

BS Electrical Boxes And Covers For Switches Depth 16mm / 25mm / 35mm
BS Electrical Boxes And Covers For Switches Depth 16mm / 25mm / 35mm BS Electrical Boxes And Covers For Switches Depth 16mm / 25mm / 35mm BS Electrical Boxes And Covers For Switches Depth 16mm / 25mm / 35mm BS Electrical Boxes And Covers For Switches Depth 16mm / 25mm / 35mm

Large Image :  BS Electrical Boxes And Covers For Switches Depth 16mm / 25mm / 35mm

Product Details:
Place of Origin: Zhejiang ,china
Brand Name: TOPELE
Certification: BS4568 / EN50086
Model Number: TP33
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: negotiable
Packaging Details: Carton
Delivery Time: 15 days
Payment Terms: TT/LC at sight
Supply Ability: 50000pcs per day
Detailed Product Description
Brand: Topele Standard: British Standard
Made Of: Pre-Galvanized Steel Depth:: 16mm, 25mm, 35mm And 47mm
High Light:

outlet box covers

,

electrical box covers

British Standard Pre-Galvanized Steel Electrical Boxes And Covers ,  BS Box For Switches





Descrition:

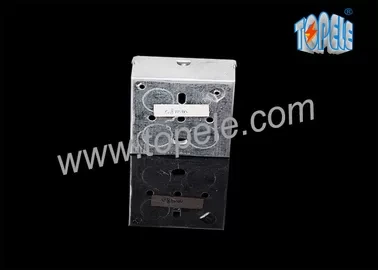

•Galvanized Steel Switch and Socket Box of BS standard are designed for mounting switches, devices or receptacles in masonry walls.

•The Diameter of the Kocknots are 20mm and 25mm.

•With fixed ears and adjustable ears, also can provide earthing screw, brass plated and brass plated earthing screw

•Dimension: 73mm*73mm*35mm

•Wide specifications are available, thickness is up to customer's requirement from 0.6mm to 2.0mm





Applications:



TOPELE 3*3 1-Gang British Standard Switch Box

These topele BS 1-Gang boxes with conduit knockouts are installed in walls or ceilings for lighting fixtures,

switches, receptacles or other outlet devices. Square boxes are used to bring power to a number of electrical

devices where mul-tiple conductor runs are split in two or more directions.



Field Names: gi box, GI box, one gang box, two gang box, BS conduit box





Specifications:



TOPELE   3*3 and 3*6 ,1-Gang  British Standard Switch Box

The specification is 73 x 73 x 35

2) The deep of products that we can produce are 16mm, 25mm, 35mm and 47mm
3) Products can with or without earth screw
4) Products can with adjustable installation lug or fixed installation lug
5) Diameter of knockout holes are 1/2" (20mm) and 3/4" (25mm)

BS Electrical Boxes And Covers For Switches Depth 16mm / 25mm / 35mm 0

BS Electrical Boxes And Covers For Switches Depth 16mm / 25mm / 35mm 1

BS Electrical Boxes And Covers For Switches Depth 16mm / 25mm / 35mm 2

BS Electrical Boxes And Covers For Switches Depth 16mm / 25mm / 35mm 3



BS Electrical Boxes And Covers For Switches Depth 16mm / 25mm / 35mm 4

BS Electrical Boxes And Covers For Switches Depth 16mm / 25mm / 35mm 5

Advantages:
smooth surface with anti-rust oil to keep the box in good condition.

Using standard Material

Sufficient Thickness

Hot selling in Iraq
