Product Details:
Payment & Shipping Terms:
|
| Material: | Q195 Steel | Standard: | ANSI C80.3 |
|---|---|---|---|
| Size: | 1/2“- 4“ | Surface Treatment: | Pre-galvanized / Hot Dip Galvanized |
| Package: | 10-50 Pcs/ Bundle | Type: | Welded |
| Color: | Silver | Usage: | Protection For Cable And Wire,underground |
| High Light: | liquid tight flexible conduit,electrical conduits and fittings |
||

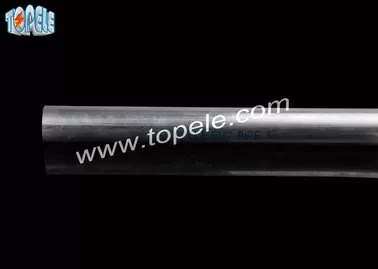

1/2" Carbon Steel Galvanised EMT conduit / EMT Tube Conduit For Electrical Cable
PDF Catalogue:TOPELE UL EMT Conduit.pdf
Description:
With the stardard wall thickness and thinner thickness of EMT conduit, Topele's conduit creates an electrical raceway system, easier for future wiring changes and provide excellent protection to the cables.
May be Used for Exposed or Concealed Applications
Indoors or Outdoors
Can be Used in Wet or Dry Conditions
May be Buried Directly in Earth or in Concrete
Permitted as an Equipment Grounding Conductor
Tade Size : from 1/2” to 2”
Length: 3050mm or according to customer’s requirement
Surface finished: Pre-Galvanized or Hot dip galvanized(HDG).
Material : carbon steel coil
Package: emt conduits tied into small bundles with steel straps, then covers with white plastic bag.
Brand: TOPELE
Market: USA, Panama, Peru, Venezuela, Iraq, Ecuador,Colombia.
Applications:
The EMT pipe is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This EMT pipe is made of an unthreaded galvanized steel and has an organic coating inside.The outside is galvanized for corrosion protection and the inside has an approved corrosion-resistant organic coating.
An unthreaded thin-wall raceway of circular cross-section designed for the phycical protection and routing of conductors and enables for use as an equipment grounding conductor when installed utilizing appropriate fitting.
Specifications:
|
nominal diameter |
external diameter |
thickness of wall |
length |
packing |
weight/unit(kg) |
|
EMT Tube - thin wall thickness pipe |
|
|
|
||
|
1/2" |
17.93mm |
0.85mm |
3.05m |
20pcs/bundle |
1.092 |
|
3/4" |
23.42mm |
1mm |
3.05m |
15pcs/bundle |
1.686 |
|
1" |
29.54mm |
1.1mm |
3.05m |
10pcs/bundle |
2.353 |
|
1-1/4" |
38.35mm |
1.30mm |
3.05m |
5pcs/bundle |
3.623 |
|
1-1/2" |
44.2mm |
1.30mm |
3.05m |
5pcs/bundle |
4.195 |
|
2" |
55.8mm |
1.40mm |
3.05m |
5pcs/bundle |
5.728 |
| nominal diameter | external diameter | thickness of wall | length | packing | weight/unit(kg) |
| EMT Tube - standard wall thickness pipe | |||||
| 1/2" | 17.93mm | 1.07mm | 3.05m | 20pcs/bundle | 1.33 |
| 3/4" | 23.42mm | 1.25mm | 3.05m | 15pcs/bundle | 2.06 |
| 1" | 29.54mm | 1.45mm | 3.05m | 10pcs/bundle | 3.06 |
| 1-1/4" | 38.35mm | 1.65mm | 3.05m | 5pcs/bundle | 4.56 |
| 1-1/2" | 44.2mm | 1.65mm | 3.05m | 5pcs/bundle | 5.28 |
| 2" | 55.8mm | 1.65mm | 3.05m | 5pcs/bundle | 6.78 |
Competitive Advantage:
+Clear printing on the conduits
+Quick Delivery: 15days for one 20ft container. Our located in hangzhou, which is close to ningbo port and near to shanghai port, it is good for shipping and with cheap shipping cost.
+Competitive Price: as we control cost well.
+ Good Quality: ISO certificate approval
+Best Service: gurantee the quality for 1 year, no allowance in the weight.
