Product Details:
Payment & Shipping Terms:
|
| Material: | Galvanized Carbon Steel | Size: | 1/2" To 4" |
|---|---|---|---|
| Type: | EMT Conduit | Standard: | ANSI C80.3-1983 |
| High Light: | explosion proof conduit fittings,liquid tight flexible conduit |
||
Galvanized Carbon Steel EMT Conduit Fittings 1/2" To 4" Tubing Manufactruer Factory Direct
Description:

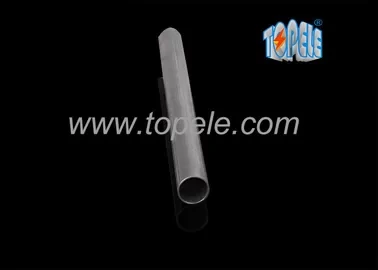

1.Product Name : EMT Pipe
2.Standard: ANSI C80.3
3.Tade Size : From 1/2” to 4”
4.Length: 3050mm (10 feet) or according to customer’s requirement
5.Usage: EMT conduit pass through the electrical wires with the purpose of protection for the electrical raceway system
6.Surface Finished: Pre-Galvanized or Hot dip galvanized(HDG).
7.Material : Carbon Steel Coil
8.Package: EMT conduits tied into small bundles with steel straps, then covers with white plastic bag.
Applications:
This 1/2 in. x 10 ft. EMT pipe is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This EMT pipe is made of an unthreaded galvanized steel and has an organic coating inside.
An un threaded thin-wall raceway of circular cross-section designed for the phycical protection and routing of conductors and enables for use as an equipment grounding conductor when installed utilizing appropriate fitting.
Specifications:
| Nominal diameter | External diameter | Wall Thickness | Length | Packing | Weight/Unit(kg) | |
| 1. EMT Tube(Electrical metallic tubing) standard pipe | ||||||
| 1/2" | 17.93mm | 1.07mm | 3.05m | 20pcs/bundle | 1.36 | |
| 3/4" | 23.42mm | 1.24mm | 3.05m | 15pcs/bundle | 2.07 | |
| 1" | 29.54mm | 1.45mm | 3.05m | 10pcs/bundle | 3.06 | |
| 1-1/4" | 38.35mm | 1.60mm | 3.05m | 5pcs/bundle | 4.56 | |
| 1-1/2" | 44.2mm | 1.65mm | 3.05m | 5pcs/bundle | 5.28 | |
| 2" | 55.8mm | 1.65mm | 3.05m | 5pcs/bundle | 6.78 | |
| 2-1/2" | 73.03mm | 1.83mm | 3.05m | 1pcs/bundle | 9.8 | |
| 3" | 88.9mm | 1.83mm | 3.05m | 1pc | 11.98 | |
| 3-1/2" | 101.6mm | 2.11mm | 3.05m | 1pc | 15.79 | |
| 4" | 114.3mm | 2.11mm | 3.05m | 1pc | 17.8 | |
| Nominal diameter | External diameter | Thickness of wall | Length | Packing | Weight/Unit(kg) |
| EMT Tube - thin wall thickness pipe | |||||
| 1/2" | 17.93mm | 0.85mm | 3.05m | 20pcs/bundle | 1.092 |
| 3/4" | 23.42mm | 1mm | 3.05m | 15pcs/bundle | 1.499 |
| 1" | 29.54mm | 1.1mm | 3.05m | 10pcs/bundle | 2.353 |
| 1-1/4" | 38.35mm | 1.30mm | 3.05m | 5pcs/bundle | 3.623 |
| 1-1/2" | 44.2mm | 1.30mm | 3.05m | 5pcs/bundle | 4.195 |
| 2" | 55.8mm | 1.40mm | 3.05m | 5pcs/bundle | 5.728 |
Competitive Advantage:
+Quick Delivery: 15days for one 20ft container.
+Competitive Price
+ Good Quality: ISO certificate approval
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
