IMC Conduit And Fittings Malleable Iron Rigid Insulated Grounding Bushing

China IMC Conduit And Fittings Malleable Iron Rigid Insulated Grounding Bushing supplier
IMC Conduit And Fittings Malleable Iron Rigid Insulated Grounding Bushing supplier IMC Conduit And Fittings Malleable Iron Rigid Insulated Grounding Bushing supplier IMC Conduit And Fittings Malleable Iron Rigid Insulated Grounding Bushing supplier IMC Conduit And Fittings Malleable Iron Rigid Insulated Grounding Bushing supplier

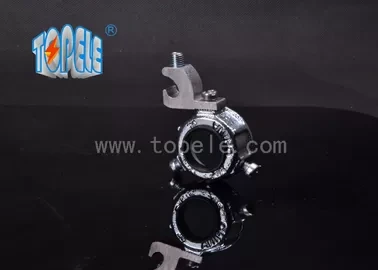

Large Image :  IMC Conduit And Fittings Malleable Iron Rigid Insulated Grounding Bushing

Product Details:

Place of Origin: Zhejiang ,china
Brand Name: TOPELE
Certification: ISO CERTIFICATE
Model Number: CB

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: negotiable
Packaging Details: Small Plastic bags+carton box, or inner box+carton box+wooden pallet
Delivery Time: above 30days, depend on the final order quantity.
Payment Terms: TT/LC AT SIGHT
Supply Ability: 100,0,00pcs per month
Contact Now
Detailed Product Description



IMC Conduit And Fittings Malleable Iron Rigid Insulated Grounding Bushing





Description:

Rigid Bushing - Malleable Iron

1.Main body Material:Malleable Iron

2. Grounding lug: Aluminum alloy
3.Size:1/2" to 4"
4.Plastic Liner prevents damage to wire insulation .



Application:



Used with a locknut to terminal threadless rigid and IMC conduit to a box or enclosure and to provide a smooth pulling surface. Thermoplastic liner prevents damage to wire insulation. Line rated at 150 degree.



Features:

The plastic liner won't chip, crack, swell or shrink. It resists corrosion, chemecals, and temperature extremes.

Set-screw provided with each fitting locks bushing in any desired position







Specifications:

Cat # Trade Size  Grounding Lug Wire Capacity Solid Strand Min Grounding Lug Wire Capacity Solid Strand Max
CB-50M 1/2" #14 #4
CB-75M 3/4" #14 #4
CB-100M 1" #14 #4
CB-125M 1-1/4" #14 #4
CB-150M 1-1/2" #14 #4
CB-200M 2" #14 #4
CB-250M 2-1/2" #14 #4
CB-300M 3" #14 #1/0
CB-400M 4" #14 #1/0




Dimensions in Inches:

Dimension A IN Inches:      1-7/8"

Dimension B in Inches:        3/4"

Dimension Cin Inches:         1-15/16"



Refer to the Image:

IMC Conduit And Fittings Malleable Iron Rigid Insulated Grounding Bushing







Competitive Advantage:



TOPELE’S threaded insulating bushings easily screw on threaded conduits. Their smooth throat design ensures that wires will not be damaged during wire pulling.

IMC Conduit And Fittings Malleable Iron Rigid Insulated Grounding BushingIMC Conduit And Fittings Malleable Iron Rigid Insulated Grounding Bushing
