3/4âor 1â Channel Inspection Elbow Tee Circular malleable iron Junction Box For Rigid Conduit
| Material: | Aluminum | Type: | Junction Box |
| Size: | 20mm,25mm,etc | Standard: | BS4568,BS1940 |
| Technics: | Casting | Connection Box Type: | Threaded |
| Packaging Details: | Standard Export Cartons | ||
| High Light: | electrical gang box,2 way junction box |
||
3/4” or 1” Three Way Channel Inspection Elbow Tee Circular Malleale Iron Junction Box For BS Conduit Pipe
Description:

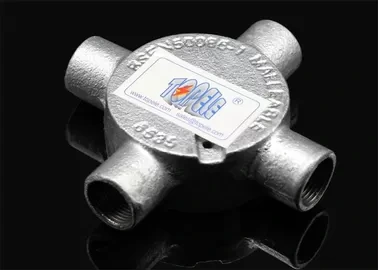

TOPELE BS4568/BS31 Malleable iron Circular Junction Box
Marking: TOPELE
Material: malleable iron
Standard: BS4568/BS31
Size: 20mm, 25mm,32mm, 3/4”, 1”,1-1/4”
Note:
1.With tapped hole in base for earthing screw.
2.Supplied with covers and fixing screws.
3.Order 3/4" & 1" when using with BS31 Conduits.
4.Order 20mm,25mm when using with BS4568 Conduits.
5.BS31 boxes also available in cast Iron & finish galvanized coating.
6.Box Covers are available 1.0/1.2mm thickness, finish Hot-Dipped Galvanized;
Other Junction Boxes:
One way box-terminal box. Two way box-Angle box, Two way box-Through box, Three way box-Tee box, four way box-intersection box, Elbows, Intersection T box available
Applications:
TOPELE BS4568/BS31 Malleable iron Circular Junction Box
to protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction and provide access to conductors for maintenance and future system change.
Specifications:
TOPELE BS4568/BS31 Malleable iron Circular Junction Box
Marking: TOPELE
Standard: BS4568/BS31
Size: 20mm, 25mm,32mm, 3/4”, 1”,1-1/4”
Competitive Advantage:
TOPELE BS4568/BS31 Malleable iron Circular Junction Box
+Quick Delivery: 30days for one 20ft container.
+Competitive Price
+ Good Quality:
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
