IMC Conduit And Fittings,Zinc Plated Steel One Hole EMT / IMC Conduit Straps/UL listed galvanized steel Rigid one hole s
| Material: | Zinc Plate Steel | Size: | 1/2"~4" |
| High Light: | imc conduit,explosion proof conduit fittings |
||

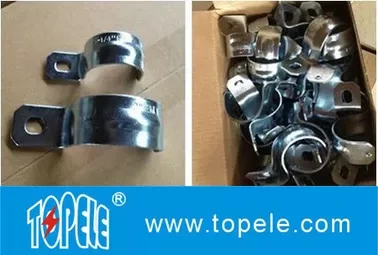

IMC Conduit And Fittings, Zinc Plated Steel One Hole EMT / IMC Conduit Straps
IMC Pipe / Conduit Strap-one hole
Material: Zinc Plated Steel
SIZE: 1/2”—4”
Field Names: IMC Conduit straps, IMC conduit one-hole strap, IMC conduit clip, IMC one hole strap
Applications
◊For attaching conduit and light duty pipe to walls and ceilings of any base material including wood, steel beams, concrete and steel purlins
◊ Mostly using for fixing the emt conduit/imc and rigid conduit, same material but imc and rigid conduit strap much thicker than emt
◊ Mounting EMT conduit in dry or wet location are both OK, these straps are easy to be used to conduit
Specifications
|
Part number |
Type Size |
Std. Conduit |
|
|
|
|
|
|
|
OSP-50 |
1/2” |
EMT/IMC |
|
|
OSP-75 |
3/4” |
EMT/IMC |
|
|
OSP-100 |
1” |
EMT/IMC |
|
|
OSP-125 |
1-1/4” |
EMT/IMC |
|
|
OSP-150 |
1-1/2” |
EMT/IMC |
|
|
OSP-200 |
2” |
EMT/IMC |
|
|
OSP-250 |
2-1/2” |
EMT/IMC |
|
|
OSP-300 |
3” |
EMT/IMC |
|
|
OSP-350 |
3-1/2” |
EMT/IMC |
|
|
OSP-400 |
4” |
EMT/IMC |
|
Advantage
Topele’s zinc plated steel construction provides mechanical protection for the conduit straps. Topele’s one-hole conduit strap design allows the installer to easily position the strap before mounting pipes on walls. Additionally, the oversized bolt-hole design makes conduit alignment with box knockout quick and easy.
