Three Way BS4568 / Malleable Iron Pipe Fitting Angle Circular Junction Box

China Three Way BS4568 / Malleable Iron Pipe Fitting Angle Circular Junction Box supplier
Three Way BS4568 / Malleable Iron Pipe Fitting Angle Circular Junction Box supplier Three Way BS4568 / Malleable Iron Pipe Fitting Angle Circular Junction Box supplier

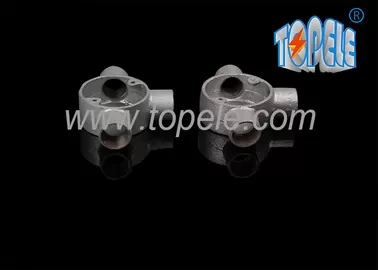

Large Image :  Three Way BS4568 / Malleable Iron Pipe Fitting Angle Circular Junction Box

Product Details:

Place of Origin: Zhejiang ,china
Brand Name: TOPELE
Model Number: TP101--128

Payment & Shipping Terms:

Minimum Order Quantity: 500PCS
Price: negotiable
Packaging Details: Carton
Delivery Time: 20 days
Payment Terms: TT/LC at sight
Supply Ability: 50000pcs per day
Contact Now
Detailed Product Description
Material: Iron Technics: Casting
Type: Junction Box Size: 20mm , 25mm
Head Code: Round

Three Way BS4568 / Malleable Iron Pipe Fitting Angle Circular Junction Box





Description:



TOPELE  BS4568/BS31 Malleable Iron  Junction Box—Angle Way

BS4568 Malleable iron Junction Box

Marking: TOPELE

Type: Elbows, Tees, Crosses, Caps, Sockets, Flanges, Back-nuts, Bushes, Nipples, Unions, Plugs, Bends, etc.

Product Category: Malleable iron pipe Fittings

Material: Malleable Iron

Finish: Hot-dip Galvanized, Black

Standard: BS4568/BS31

Size: 20mm, 25mm, 3/4”, 1”

60.3mm Internal Diameter x 25.4mm Deep Tapped M4 in mm sizes and 2BA in imperial sizes of 50.3mm with tapped hole in base for earthing screw.



Note:

1.With tapped hole in base for earthing screw.

2.Supplied without covers or fixing screws unless ordered.

3.Order 3/4" & 1" when using with BS31 Conduits.

4.Order 20mm,25mm when using with BS4568 Conduits.

5.BS31 boxes also available in cast Iron & finish galvanized coating.

6.Box Covers are available 1.0/1.2mm thickness, finish Hot-Dipped Galvanized;

7.Each box is supplied C/W one regulation Tap Earth Terminal Hole in base;

8.Small and large Circular Boxes available;

9.Deep pattern Boxes available;

10. Inspection

10.Full range of Conduit Fittings(Saddles) available to suit different site needs;

11.Good range of other supporting Conduit Fittings available.



Other Junction Boxes:

One way-terminal. Two way-Angle, Two way-U Shape. Two way-Through, Three way-Tee, Three way-Y Shape, Four Way-Intersection, Four Way-H shape Junction Boxes available







Applications:



TOPELE  BS4568 Malleable Iron  Angle Junction Box

to protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, Protecting the conductor and conductor connection  change conduit direction and provide access to conductors for maintenance and future system change







Specifications:



TOPELE  BS4568 Malleable Iron  Junction Box

BS4568 Malleable iron Junction Box

Marking: TOPELE

Material: Malleable Iron

Finish: Hot-dip Galvanized, Black

Standard: BS4568/BS31

Size: 20mm, 25mm, 3/4”, 1”





Competitive Advantage:



TOPELE  BS4568 Malleable Iron  Junction Box

+The products which we made are widely, such as elbows, tees, crosses, caps, sockets, plugs.

+Quick Delivery: 30days for one 20ft container.
+Competitive Price

+Sample available

+ Good Quality:

+Best Service: fast delivery, strong package, good price, timely and effective communication

+Powerful Solution: fast and effective solution to problem



Three Way BS4568 / Malleable Iron Pipe Fitting Angle Circular Junction Box
