Payment & Shipping Terms:
|Brand:||TOPELE||Function:||Struct Channels Fitting|
|Trade Way:||FOB, CNF, CIF||Color:||Silver, Grey Or As Order|
|Place Of Origin:||Zhejiang China( Mainland)||Type:||Ventilated Or Perforated Trough|
|Width:||5/8", 13/16", 13/32"||Quality:||International Standard|
strut pipe clamp,
stainless steel unistrut

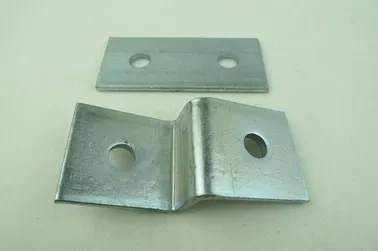

Steel Galvanized Unistrut Channel, Wing Fitting / Angle Strut Fitting For Channel Connecting
The series are all manufactured from low-carbon steel with galvanized finish.
1.Thickness is 6.35mm, hole spacing on center is 47.6mm, hole spacing from end is 20.6mm, width is 40 mm and steel grade is Q235 for all general fittings but special specification.
2.Hole diameter is 11mm for M10 fittings,13mm for M12 fittings but special specification.
3.The series are all manufacture from low-carbon steel with galvanized finish.
4.The series are also available in stainless steel. If you need special application fittings, contact us for size.
Steel plate Fittings are mainly used to connect the strut channels on the pipe supporting Systems
Flat fittings, Angle Fittings, Wing Fitting, Splice Fittings, Z Fittings, U Fittings,
Post Bases and Special Application Fitting.
TOPELE strut channel system include:
1) C channel system
2) U channel system
3) L channel system
4) strut channel system
5) channel accessories
+Quick Delivery: 15days for one 20ft container.
+ Good Quality: ISO certificate approval
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
Contact Person: Cassie
