Product Details:
Payment & Shipping Terms:
|
Product Name: | Riser Clamp | Marking: | TOPELE |
---|---|---|---|
Material: | Steel | Standard: | UL |
Size: | 1/2" - 6" | Color: | Sliver Or Black |
Highlight: | pipe holder clamp,strut channel clamps |

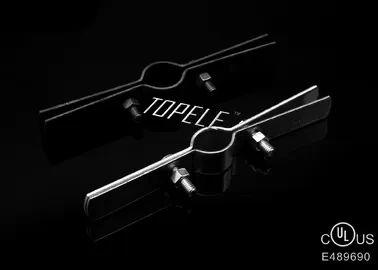

Zinc Plated / Black Riser Pipe Clamp with Bolt, Pipe Holder UL Standard
Description:
Riser Clmap
Size Range: from 1/2" to 6"
Material: Carbon Steel
Color: Sliver or Black
Standard for Safty: UL 2239 and CSA C22.2 No. 18.4-15 - Hardware for the Support of Conduit, Tubing, and Cable
Certificate Reference: E489690
Applications:
For support and steadying of steel pipe risers either insulated or bare, cast iron pipe, or conduit.
Specifications:
ITEM | Pipe Size |
O.D .in |
O.D MM |
WIDTH MM |
T.H MM |
Bolt |
RC50 | 1/2″ | 0.840 | 21.336 | 25.00 | 4.00 | 3/8"1-1/4" |
RC75 | 3/4″ | 1.050 | 26.670 | 25.00 | 4.00 | 3/8"1-1/4" |
RC100 | 1″ | 1.315 | 33.401 | 25.00 | 4.00 | 3/8"1-1/4" |
RC125 | 1-1/4″ | 1.660 | 42.164 | 25.00 | 4.00 | 3/8"1-1/4" |
RC150 | 1-1/2″ | 1.900 | 48.260 | 25.00 | 4.00 | 3/8"*1-1/2" |
RC200 | 2″ | 2.375 | 60.325 | 25.00 | 4.00 | 3/8"*1-1/2" |
RC250 | 2-1/2″ | 2.875 | 73.025 | 25.00 | 6.00 | 3/8"*1-1/2" |
RC300 | 3″ | 3.500 | 88.900 | 25.00 | 6.00 | 3/8"*1-1/2" |
RC350 | 3-1/2" | 4.000 | 101.600 | 25.00 | 6.00 | 1/2"*1-3/4" |
RC400 | 4″ | 4.500 | 114.300 | 25.00 | 6.00 | 1/2"*1-3/4" |
RC500 | 5″ | 5.562 | 141.275 | 38.00 | 6.00 | 1/2"*1-3/4" |
RC600 | 6″ | 6.625 | 168.275 | 38.00 | 6.00 | 1/2"*2" |
Competitive Advantage:
+Quick Delivery: 30days for one 20ft container.
+Competitive Price
+ Good Quality:
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
Contact Person: Ms. Sharon Zhou
Tel: +86-15988402508
Fax: 86-571-56059920
