Product Details:
Payment & Shipping Terms:
|
| Product Name: | Riser Clamp | Marking: | TOPELE |
|---|---|---|---|
| Material: | Steel | Standard: | UL |
| Size: | 1/2" - 6" | Color: | Sliver Or Black |
| Highlight: | strut channel clamps,strut pipe clamps |
||

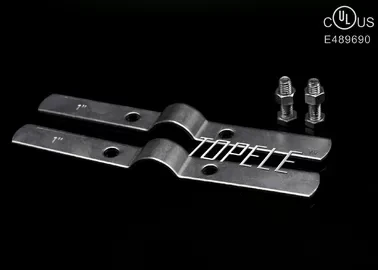

Zinc Plated / Black Riser Pipe Clamp with Bolt, Pipe Holder UL Standard
Description:
Riser Clmap
Size Range: from 1/2" to 6"
Material: Carbon Steel
Color: Sliver or Black
Standard for Safty: UL 2239 and CSA C22.2 No. 18.4-15 - Hardware for the Support of Conduit, Tubing, and Cable
Certificate Reference: E489690
Applications:
For support and steadying of steel pipe risers either insulated or bare, cast iron pipe, or conduit.
Specifications:
| ITEM | Pipe Size |
O.D .in |
O.D MM |
WIDTH MM |
T.H MM |
Bolt |
| RC50 | 1/2″ | 0.840 | 21.336 | 25.00 | 4.00 | 3/8"1-1/4" |
| RC75 | 3/4″ | 1.050 | 26.670 | 25.00 | 4.00 | 3/8"1-1/4" |
| RC100 | 1″ | 1.315 | 33.401 | 25.00 | 4.00 | 3/8"1-1/4" |
| RC125 | 1-1/4″ | 1.660 | 42.164 | 25.00 | 4.00 | 3/8"1-1/4" |
| RC150 | 1-1/2″ | 1.900 | 48.260 | 25.00 | 4.00 | 3/8"*1-1/2" |
| RC200 | 2″ | 2.375 | 60.325 | 25.00 | 4.00 | 3/8"*1-1/2" |
| RC250 | 2-1/2″ | 2.875 | 73.025 | 25.00 | 6.00 | 3/8"*1-1/2" |
| RC300 | 3″ | 3.500 | 88.900 | 25.00 | 6.00 | 3/8"*1-1/2" |
| RC350 | 3-1/2" | 4.000 | 101.600 | 25.00 | 6.00 | 1/2"*1-3/4" |
| RC400 | 4″ | 4.500 | 114.300 | 25.00 | 6.00 | 1/2"*1-3/4" |
| RC500 | 5″ | 5.562 | 141.275 | 38.00 | 6.00 | 1/2"*1-3/4" |
| RC600 | 6″ | 6.625 | 168.275 | 38.00 | 6.00 | 1/2"*2" |
Competitive Advantage:
+Quick Delivery: 30days for one 20ft container.
+Competitive Price
+ Good Quality:
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
Notes:
We are manufactuer of pipe fittings with self-management export power.
Our products 100% export to all over the world and get good reputation in the international market for more than 10 years.
If you have some interests , please contact us at any time. We’ll give you a early reply!
According to your requirement, we are ready to serve you at best quality and competitive price on every product
We guarantee best service and best timely delivery and do our best to meet your inquires at any time.
It is our honor to develop the business relationship and friendship with your esteem company for long terns basis.
Contact Person: Ms. Sharon Zhou
Tel: +86-15988402508
Fax: 86-571-56059920
