    Product Name: Riser Clamp Marking: TOPELE
    Material: Steel Standard: UL 2239 & CSA C22.2 No. 18.4-15
    Size: 1/2" - 6" Color: Black
    High Light:

    pipe holder clamp

    ,

    strut channel clamps

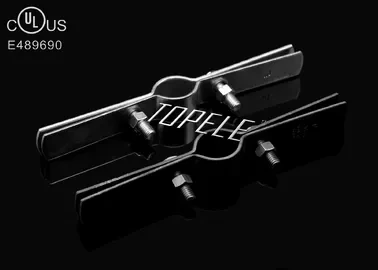

    UL Certified Steel Riser Pipe Clamp with Two Bolt, Pipe Hanger​



    Description:



    Riser Clmap

    Size Range: from 1/2" to 6"

    Material: Carbon Steel

    Finish: Black

    Standard for Safty: UL 2239 and CSA C22.2 No. 18.4-15 - Hardware for the Support of Conduit, Tubing, and Cable

    Certificate Reference: E489690





    Applications:

    For support and steadying of steel pipe risers either insulated or bare, cast iron pipe, or conduit.

    UL Certified Steel Riser Pipe Clamp with Two Bolt, Pipe Hanger - Black 0UL Certified Steel Riser Pipe Clamp with Two Bolt, Pipe Hanger - Black 1



    Specifications:



    ITEM Pipe
    Size
    O.D
    .in
    O.D
    MM
    WIDTH
    MM
    T.H
    MM
    Bolt
    RC50 1/2″ 0.840 21.336 25.00 4.00 3/8"1-1/4"
    RC75 3/4″ 1.050 26.670 25.00 4.00 3/8"1-1/4"
    RC100 1″ 1.315 33.401 25.00 4.00 3/8"1-1/4"
    RC125 1-1/4″ 1.660 42.164 25.00 4.00 3/8"1-1/4"
    RC150 1-1/2″ 1.900 48.260 25.00 4.00 3/8"*1-1/2"
    RC200 2″ 2.375 60.325 25.00 4.00 3/8"*1-1/2"
    RC250 2-1/2″ 2.875 73.025 25.00 6.00 3/8"*1-1/2"
    RC300 3″ 3.500 88.900 25.00 6.00 3/8"*1-1/2"
    RC350 3-1/2" 4.000 101.600 25.00 6.00 1/2"*1-3/4"
    RC400 4″ 4.500 114.300 25.00 6.00 1/2"*1-3/4"
    RC500 5″ 5.562 141.275 38.00 6.00 1/2"*1-3/4"
    RC600 6″ 6.625 168.275 38.00 6.00 1/2"*2"





    Competitive Advantage:

    +Quick Delivery: 30days for one 20ft container.
    +Competitive Price

    + Good Quality:

    +Best Service: fast delivery, strong package, good price, timely and effective communication

    +Powerful Solution: fast and effective solution to problem

    UL Certified Steel Riser Pipe Clamp with Two Bolt, Pipe Hanger - Black 2

    UL Certified Steel Riser Pipe Clamp with Two Bolt, Pipe Hanger - Black 3

    UL Certified Steel Riser Pipe Clamp with Two Bolt, Pipe Hanger - Black 4
