Material: | Aluminum | Surface Treatment: | Aluminum |
Length: | 10 Ft | Type: | Electrical Pipe |
Thickness: | 0.85-2.11mm | Size: | 1/2-4 Inch |
Standard: | UL797 | Feature: | Super Strong Anticorrosion |
High Light: | explosion proof conduit fittings,liquid tight flexible conduit |
3/4" Aluminum electricl metallic conduit higher resistance to corrosion conduit,EMT Conduit and fittings
Description:

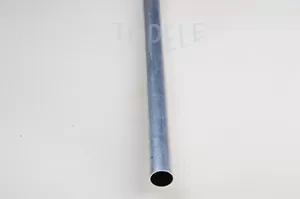

3/4" Aluminum conduit higher resistance to corrosion conduit
EMT conduit pipe is one of the lightest and thinnest threading pipe in American standard. The pipe head has no thread, and it is connected with set screw type connector which is mostly used in indoor decoration.
Aluminum conduit, similar to galvanized steel conduit, is a rigid tube, generally used in commercial and industrial applications where a higher resistance to corrosion is needed. Such locations would include food procesing plants, where large amounts of water and cleaning chemicals would make galvanized conduit unsuitable. Aluminum cannot be directly embedded inconcrete , since the metal reacts with the akalise in cement. The conduit may be coated to prevent corrosion by incidental contact with concrete. Aluminum conduit is generally lower cost than steel in addition to having a lower labor cost to install, since a length of aluminum conduit will have about one-third the weight of an equally-sized rigid steel conduit.
Key words: ALUMINUM CONDUIT , ALUMINUM PIPE, ALUMINUM TUBE, EMT CONDUIT, EMT PIPE , EMT TUBE , ELECRICAL METALLIC TUBING.LIGHT WEIGHT CONFUIT.
Applications:
TOPELE EMT Aluminum conduit is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This EMT CONDUIT is made of aluminum alloy, it has a strong corrosion resistance,and light weught help people wasy to intall.
From thickness, TOPELE have standard and thiner for customer choose,the thickness can also be customized according to the customer's requirements.
From the surface treatment, TOPELE have hot dipped Galvanized (HDG) and the Pre- galvanized.
Specifications:
Nominal diameter | External diameter | Wall Thickness | Length | Packing | Weight/Unit(kg) | |
1. EMT Tube(Electrical metallic tubing) standard pipe | ||||||
1/2" | 17.93mm | 1.07mm | 3.05m | 20pcs/bundle | 1.36 | |
3/4" | 23.42mm | 1.24mm | 3.05m | 15pcs/bundle | 2.07 | |
1" | 29.54mm | 1.45mm | 3.05m | 10pcs/bundle | 3.06 | |
1-1/4" | 38.35mm | 1.60mm | 3.05m | 5pcs/bundle | 4.56 | |
1-1/2" | 44.2mm | 1.65mm | 3.05m | 5pcs/bundle | 5.28 | |
2" | 55.8mm | 1.65mm | 3.05m | 5pcs/bundle | 6.78 | |
2-1/2" | 73.03mm | 1.83mm | 3.05m | 1pcs/bundle | 9.8 | |
3" | 88.9mm | 1.83mm | 3.05m | 1pc | 11.98 | |
3-1/2" | 101.6mm | 2.11mm | 3.05m | 1pc | 15.79 | |
4" | 114.3mm | 2.11mm | 3.05m | 1pc | 17.8 |
Nominal diameter | External diameter | Thickness of wall | Length | Packing | Weight/Unit(kg) |
EMT Tube - thin wall thickness pipe | |||||
1/2" | 17.93mm | 0.85mm | 3.05m | 20pcs/bundle | 1.092 |
3/4" | 23.42mm | 1mm | 3.05m | 15pcs/bundle | 1.499 |
1" | 29.54mm | 1.1mm | 3.05m | 10pcs/bundle | 2.353 |
1-1/4" | 38.35mm | 1.30mm | 3.05m | 5pcs/bundle | 3.623 |
1-1/2" | 44.2mm | 1.30mm | 3.05m | 5pcs/bundle | 4.195 |
2" | 55.8mm | 1.40mm | 3.05m | 5pcs/bundle | 5.728 |
Competitive Advantage:
EMT AluminumConduit
+Quick Delivery: 15days for one 20ft container.
+Competitive Price
+ Good Quality: ISO certificate approval
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
