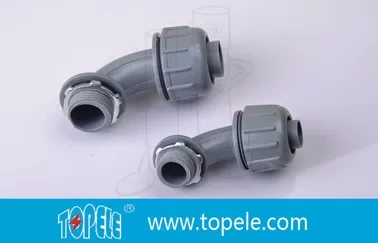

3/4" Nonmetallic Nylon Flexible Conduit Fittings 90 Degree Connector For Liquid Tight
| Product Name: | Flexible Conduit And Fittings | Material: | PVC Plastic |
| Size: | 3/8â€â€”2†| Field Names: | Liquid-tight Conduit Connectors |
| Type: | 45/90 Degree Type, Straight Type | OEM: | YES |
| Angle: | 90 Degree | Color: | Gray |
| High Light: | flexible metal conduit fittings,emt conduit and fittings |
||
PVC Plastic Flexible Conduit And Fittings Nonmetallic Seal Tight Connectors
Quick Detail:
Liquid-tight Conduit Connectors-90° Connectors
Material: PVC Plastic
SIZE: 3/8”—2”
Field Names:
Plastic liquid-tight connector, nonmetallic: 90 Degree Seal Tight Connectors, 90 Degree Liquid-tight Connectors, 90 Degree Watertight Connectors, 90 Degree Watertight Connectors.
Applications:
These nonmetallic 90 degree connectors are used in both wet and dry locations when conduits and fittings are not subjected to physical damage. Type-B conduits and fittings are used whenever flexibility is required for the installation, operation, or maintenance of electrical appliances.
Specifications:
|
Part number |
Size
|
Std. Pkg. |
|
NMLT-3890 |
3/8” |
20 |
|
NMLT-5090 |
1/2” |
20 |
|
NMLT-7590 |
3/4” |
20 |
|
NMLT-10090 |
1” |
10 |
|
NMLT-12590 |
1-1/4” |
10 |
|
NMLT-15090 |
1-1/2” |
5 |
|
NMLT-20090 |
2” |
5 |
Competitive Advantage:
Topele’s gray, nonmetallic, PVC plastic construction provides superior corrosion resistance and flexibility. It is designed to withstand harsh weather and extreme temperature changes. Each connector comes standard with a neoprene O-ring and locknut.
