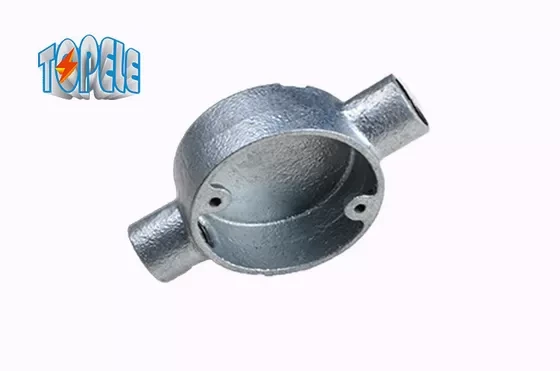

Malleable Cast Iron 2 way BS4568 conduit Circular Junction Box

Malleable Cast Iron 2 way  BS4568 conduit  Circular Junction Box
Malleable Cast Iron 2 way  BS4568 conduit  Circular Junction Box Malleable Cast Iron 2 way  BS4568 conduit  Circular Junction Box

Large Image :  Malleable Cast Iron 2 way BS4568 conduit Circular Junction Box

Product Details:
Place of Origin: Zhejiang ,china
Brand Name: TOPELE
Model Number: TP101--128
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: negotiable
Packaging Details: Carton
Delivery Time: 20-30 days
Payment Terms: TT/LC at sight
Supply Ability: 50000pcs per day
Detailed Product Description
Model Number: Electrical Conduit Box Protection Level: IP55
Type: Junction Box External Size: Circular Box
Size: 20mm 25mm 32mm Material: Iron ,malleable Iron, Grey Iron
Certificate: UL Standard: BS 4568 / BS 31
Earth: With Earthing Tap Or Without Earthing
High Light:

weatherproof outlet box

,

wiring junction box



Malleable Cast Iron 2 way BS4568 conduit Circular Junction Box







Description:

Malleable Cast Iron 2 way BS4568 conduit Circular Junction Box

Marking: TOPELE

Material: Malleable Iron

Finish: Hot-dip Galvanized, Black

Standard: BS4568/BS31

Size: 20mm, 25mm, 3/4”, 1”

60.3mm Internal Diameter x 25.4mm Deep Tapped M4 in mm sizes and 2BA in imperial sizes of 50.3mm with tapped hole in base for earthing screw.



Note:

1.With tapped hole in base for earthing screw.

2.Supplied without covers or fixing screws unless ordered.

3.Order 3/4" & 1" when using with BS31 Conduits.

4.Order 20mm,25mm when using with BS4568 Conduits.

5.BS31 boxes also available in cast Iron & finish galvanized coating.

6.Box Covers are available 1.0/1.2mm thickness, finish Hot-Dipped Galvanized;

7.Each box is supplied C/W one regulation Tap Earth Terminal Hole in base;

8.Small and large Circular Boxes available;

9.Deep pattern Boxes available;

10.Full range of Conduit Fittings(Saddles) available to suit different site needs;

11.Good range of other supporting Conduit Fittings available.



Other Junction Boxes:

One way-terminal. Two way-Angle, Two way-U Shape. Two way-Through, Three way-Tee, Three way-Y Shape, Four Way-Intersection, Four Way-H shape Junction Boxes available







Applications:



Malleable Cast Iron 2 way BS4568 conduit Circular Junction Box

to protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction and provide access to conductors for maintenance and future system change.







Specifications:



Malleable Cast Iron 2 way BS4568 conduit Circular Junction Box

Marking: TOPELE

Material: Malleable Iron

Finish: Hot-dip Galvanized, Black

Standard: BS4568/BS31

Size: 20mm, 25mm, 3/4”, 1”







Competitive Advantage:



TOPELE  BS4568 Malleable Iron  Junction Box- Three way

+Quick Delivery: 30days for one 20ft container.
+Competitive Price

+ Good Quality:

+Best Service: fast delivery, strong package, good price, timely and effective communication

+Powerful Solution: fast and effective solution to problem



Malleable Cast Iron 2 way  BS4568 conduit  Circular Junction Box 0



Malleable Cast Iron 2 way  BS4568 conduit  Circular Junction Box 1
