Brand Name: | TOPELE | Printing Words Color: | Blue And Red |
Material: | Galvanized Steel-class 3 / Hot-dipped Galvanized-class 4 | Size: | 16 Mm To 50 Mm |
Product Name: | BS4568 Conduit | Thickness: | 1.3mm---2.0 Mm |
High Light: | 20mm galvanised conduit,galvanized steel pipe |
Galvanized Steel BS4568 Conduit / GI PIPE / Electrical Conductors
PDF Catalogue:TOPELE BS Conduit.pdf
Description:

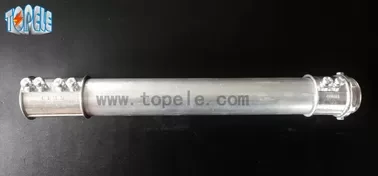

BS4568 CONDUIT with a coupling and a protection blue cap
· TOPELE BRAND BS4568 CONDUIT Protect insulated electrical conductors and cables
· Galvanized steel construction provides shielding from magnetic fields and protection from impact damage
and crushing
· Electroplated couplings prevent zinc build-up
· Designed for use with threaded connections
· Brand Name: TOPELE
· Printing words color: blue and red
· Length : 3.75 meters. 4.0 meters or according to customer's requirements
· Material : Galvanized steel-class 3 / Hot-dipped Galvanized-class 4
· Size: 20 mm, 25mm, 32mm
· Thickness: 1.3mm---2.0 mm
· Filed name: BS4568 CONDUIT,BS4568 TUBE,BS4568 TUBING, BS4568 PIPE, GI PIPE, GI TUBE.
GI TUBING
Applications:
TOPELE BS4568 CONDUIT is designed to protect and route cables and conductors. It can be installed
either exposed or concealed. Install it inside or outside using rain-tight fittings. This BS4568 CONDUIT is
made of Pre-galvanized steel and has an organic coating inside.
BS4568 CONDUIT provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields
and features electroplated couplings to resist build up of zinc on the threads.
Specifications:
nominal diameter |
external diameter |
thickness of wall |
length |
packing |
weight/unit(kg) |
BS4568-1970 CONDUIT |
|||||
16mm |
16mm |
1.6mm |
3.75 |
10pcs/bundle |
2.13 |
20mm |
20mm |
1.6mm |
3.75 |
10pcs/bundle |
2.72 |
25mm |
25mm |
1.6mm |
3.75 |
10pcs/bundle |
3.46 |
32mm |
32mm |
1.6mm |
3.75 |
10pcs/bundle |
4.50 |
Remark: different thickness is available
Competitive Advantage:
BS4568 CONDUIT
+Quick Delivery: 125days for one 20ft container.
+Competitive Price
+ Good Quality: ISO +Best Service: fast delivery, strong package, good price, timely and effectivly
communication
+Powerful Solution: fast and effective solution to problem
