Product Details:
Payment & Shipping Terms:
|
| Brand Name: | TOPELE | Model Number: | EPE |
|---|---|---|---|
| Size: | 1/2" To 1" | Material: | Zinc |
| Standard: | UL Standard 514B | ||
| Highlight: | liquid tight flexible conduit,electrical conduits and fittings |
||

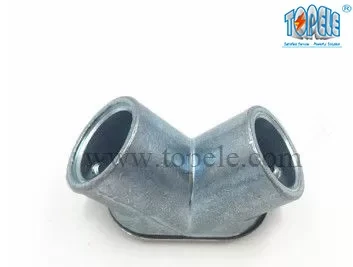

Zinc Die Cast EMT to EMT Pull Elbow
PDF Catalogue:TOPELE Pull Elbow.pdf
EMT TO EMT Pull Elbow
Set screw zinc inside corner
1. Material: Zinc
2. Size:1/2'', 3/4'', 1''
3. Used to connect two EMT conduit in corner
Application:
These set-screw EMT pull elbows are used when 90° turns are needed in conduits and when wires must be pulled through elbows before making the turn into the electrical junction box or enclosure.
Field Names: Pull elbow, EMT handy ells, EMT set-screws ells.
Material: Die-cast zinc
Specifications:
| EPE-50 | 1/2" |
| EPE -75 | 3/4" |
| EPE -100 | 1" |
Advantage:
TOPELE’S set-screw pull elbows come ready with a gasket and cover that seals out dirt, dust and moisture. This removable gasket and cover allow for wires to be pulled and fed back into pipes changing the direction as they enter boxes or enclosures. The locknut feature on TOPELE’S pull elbows secures the connection.
