Brand Name: | TOPELE | Model Number: | ECH |
Size: | 1/2"-4" | Material: | Carbon Steel / Stamped Steel |
Standard: | UL Standard 514B | ||
High Light: | explosion proof conduit fittings,liquid tight flexible conduit |

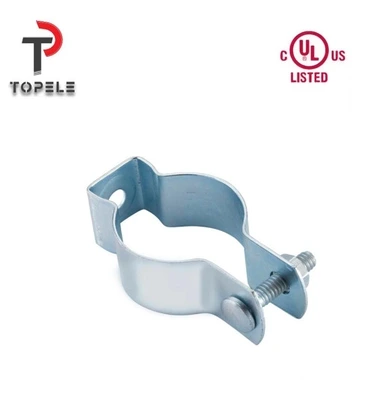

UL Standard EMT Conduit Hanger with Bolt and Nut
PDF Catalogue:TOPELE Conduit Hanger.pdf
Description:
TOPELE 'S Conduit hanger
Material: electro-galvanized steel
Material: Steel with Steel Nut & Bolt
Finishing: Galvanized
Size:1/2"-4"Conduit Hanger Available
Field Names:
Conduit hangers, cowboy hangers, mae west hangers, minnies, stand off straps, standard conduit hangers, minis, pipe hangers.
Applications:
1.They are fully adjustable and reusable,with a complete line of channels ,fittings and accessories for multi-purpose applications.
2.These conduit hangers are used in both wet and dry locations to support runs of rigid/IMC and EMT conduits from ceilings and walls.
Specifications:
Part number | Size |
ECH-50S | 1/2” |
ECH-75S | 3/4” |
ECH-100S | 1” |
ECH-125S | 1-1/4” |
ECH-150S | 1-1/2” |
ECH-200S | 2” |
ECH-250S | 2-1/2” |
ECH-300S | 3” |
ECH-350S | 3-1/2” |
ECH-400S | 4” |
Advantage:
Topele’s conduit hangers include a bolt and nut to make a speedy and economical installation. The zinc plated steel provides durability and corrosion protection.
It can be taken apart for reuse as quick as they were assembled,producing substantial savings in time and labor,yet they provide the strength of welded construction.
