Product Details:
Payment & Shipping Terms:
|
Brand Name: | TOPELE | Model Number: | ZLN |
---|---|---|---|
Size: | 1/2"-4" | Material: | ZINC |
Technics:: | Casting | Standard: | UL Standard 514B |
Highlight: | imc conduit,imc conduit fittings |
ISO Standard Rigid /IMC /EMT Conduit Locknut
Description:

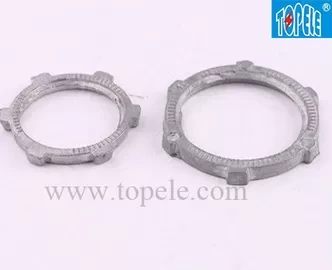

Zinc Locknut
Material:Zinc die cast
Field Names: Lock nuts, conduit nuts, locking nuts, jam nuts, coupling nuts, pipe locking nuts, locknuts.
Application:
These heavy-duty locknuts are used in dry locations to secure threaded conduits or connectors to electrical junction boxes or enclosures.
Specifications:
ZLN50 | 1/2" |
ZLN75 | 3/4" |
ZLN100 | 1" |
ZLN125 | 1-1/4" |
ZLN150 | 1-1/2" |
ZLN200 | 2" |
ZLN250 | 2-1/2" |
ZLN300 | 3" |
ZLN350 | 3-1/2" |
ZLN400 | 4" |
Competitive Advantage:
TOPELE’S heavy-gauge steel construction maintains mechanical protection and solid grounding of the conduit to the designated electrical junction box or enclosure. Heavy-duty locknuts are zinc electroplated for excellent corrosion protection in damp locations. Serrated teeth on the locknut bite into the box and enclosure to prevent vibratory loosening of the connection.
Material: Zinc DIA CAST
