ISO Certificate Conduit Fittings Of Malleable Iron Rigid Insulated Grounding Bushing
| Brand Name: | TOPELE | Model Number: | CB |
| Size: | 1/2" To 4" | Material: | Malleable Iron |
| Standard: | ISO CERTIFICATE | ||
| High Light: | explosion proof conduit fittings,imc conduit fittings |
||
IMC Conduit And Fittings Of Malleable Iron Rigid Insulated Grounding Bushing
PDF Catalogue:TOPELE Insulated Grounding Bushing.pdf
Description:

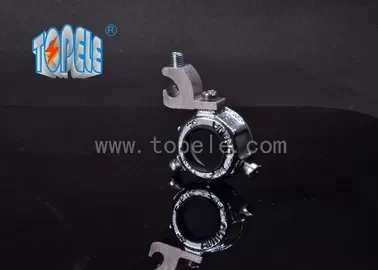

Rigid Bushing - Malleable Iron
1.Main body Material:Malleable Iron
2. Grounding lug: Aluminum alloy
3.Size:1/2" to 4"
4.Plastic Liner prevents damage to wire insulation .
Application:
Used with a locknut to terminal threadless rigid and IMC conduit to a box or enclosure and to provide a smooth pulling surface. Thermoplastic liner prevents damage to wire insulation. Line rated at 150 degree.
Features:
The plastic liner won't chip, crack, swell or shrink. It resists corrosion, chemecals, and temperature extremes.
Set-screw provided with each fitting locks bushing in any desired position
Specifications:
| Cat # | Trade Size |
| CB-50M | 1/2" |
| CB-75M | 3/4" |
| CB-100M | 1" |
| CB-125M | 1-1/4" |
| CB-150M | 1-1/2" |
| CB-200M | 2" |
| CB-250M | 2-1/2" |
| CB-300M | 3" |
| CB-350M | 3-1/2" |
| CB-400M | 4" |
Dimensions in Inches:
Dimension A IN Inches: 1-7/8"
Dimension B in Inches: 3/4"
Dimension Cin Inches: 1-15/16"
Refer to the Image:
Competitive Advantage:
TOPELE’S threaded insulating bushings easily screw on threaded conduits. Their smooth throat design ensures that wires will not be damaged during wire pulling.
