Hot Dip Galvanised Steel Unistrut Channel With UL Cable Conduit Support System
| Size: | 41X41MM, 41X21MM | Length: | 2 Mtr,3 Mtr, 6 Mtr, As Requested |
| Finished: | Pre-galvanized,Hot Dipped Galvanized,Black | Packing: | Stretch Film, Woven Bag Or Your Request |
| High Light: | strut pipe clamp,stainless steel unistrut |
||
Hot Dip Galvanized Steel Plain Strut Channel and Unistrut Channel with UL Cable Conduit Support System
PDF Catalogue:TOPELE Channel.pdf
Description:

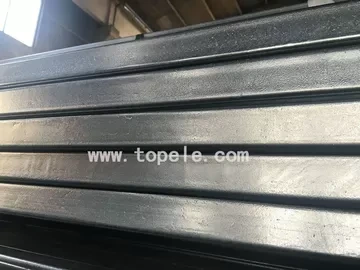

TOPELE STRUT CHANNEL
Type: plain / slotted strut channel
Size specification : 41X41MM, 41X21MM
Finish : Black, Pre-galvanized and Hot Dipped Galvanized
Thickness : 1.5mm-3.0mm
Length: 2 mtr ,3 mtr, 6 mtr, as requested
Field names: Strut, Galvanized strut, strut channel. c channel
Applications:
TOPELE SLOTTED STRUT CHANNEL
1. used to support the steel structure system which can save great manpower cost and install easily without any weldments.
2.Connected Unistrut channels in different lengths and sizes with all kinds of steel sheet bending acceossries an fasteners
3.Unistrut Channel with Bracket The support and restraint brackets are adjustable in 3 directions with Unistrut Channel
4.is used to support conduits, fixture, and ventilation systems from
structural beams and other support members.
Available Size:41X41mm, 41X21mm
|
Material:Steel Finished:Pre-galvanised Hot Dip Galvanized Length:2mtr,3mtr,6mtr |
||
| CAT NO. | METRIC SIZE | US SIZE |
| 4121 | 41mm*21mm | 1-5/8”*13/16” |
| 4141 | 41mm*41mm |
1-5/8”*1-5/8” |
Competitive Advantage:
TOPELE SLOTTED STRUT CHANNEL
1. provides an economical solution for electrical,mechanical and industrial supports
2. is designed with many timesaving features.
3..Strut channels and fitting can be taken apart for reuse as quick as they were assembled,producing substantial savings in time and labor,yet they provide the strength of welded construction.
4.They are fully adjustable and reusable,with a complete line of channels ,fittings and accessories for multi-purpose applications.
Topele’s strut channel comes in a variety of depths, widths and finishes allowing the installer to hang of support
many different conduits and fixtures from walls and overhead structural members.
