Brand Name: | TOPELE | Model Number: | SSCP |
Size: | 1/2"-4" | Material: | Aluminum/Zinc |
Standard: | UL NO. E506415 | ||
High Light: | explosion proof conduit fittings,electrical conduits and fittings |

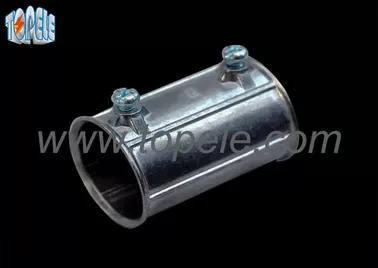

UL Listed 1/2-4 Inch EMT Conduit Fittings Of Zinc Die - Cast Set Screw Coupling
PDF Catalogue:TOPELE EMT Coupling.pdf
Description:
TOPELE zinc emt couplings are used in dry location to connect the ends of two unthreaded EMT conduits together. TOPELE EMT zinc set-screw couplings provide concrete tight connections when taped. Additionally, These set-screw couplings eliminate the need to thread bald conduits to fit old threaded couplings. EMT conduit couplings are pure zinc material for excellent corrosion protection in damp location.
EMT zinc Coupling
American Standard
Size: 1/2" to 4"
Set-screw type
Material: Zinc Die Cast
Applications:
EMT couplings: Joins steel EMT conduit to EMT conduit
•Connect & effectively bond EMT conduit to EMT conduit
•May be used indoors and outdoors
•Body made with die-cast zinc alloy
•Set screw made with zinc-plated steel
•Application type : EMT
•Electrical Product Type : Standard Fitting
•Fitting type : Coupling
•Paintable/Stainable : No
•Trade Size (in.) : [1/2"] [3/4"] [1"] [1-1/4"] [1-1/2"] [2"] [2-1/2"] [3"] [4"]
Specifications:
SSCP-50/50A | 1/2" | Set-Screw Type |
SSCP-75/75A | 3/4" | Set-Screw Type |
SSCP-100/100A | 1" | Set-Screw Type |
SSCP-125/125A | 1-1/4" | Set-Screw Type |
SSCP-150/150A | 1-1/2" | Set-Screw Type |
SSCP-200/200A | 2" | Set-Screw Type |
SSCP-250/250A | 2-1/2" | Set-Screw Type |
SSCP-300/300A | 3" | Set-Screw Type |
SSCP-400/400A | 4" | Set-Screw Type |
