Product Name: | Riser Clamp | Marking: | TOPELE |
Material: | Steel | Standard: | UL |
Size: | 1/2" - 6" | Finish: | Galvanized |
High Light: | strut channel clamps,strut pipe clamps |

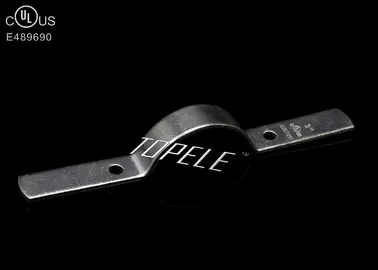

Zinc Plated / Black Riser Pipe Clamp with Bolt, Pipe Holder UL Standard
PDF Catalogue:TOPELE Riser Clamps.pdf
Description:
Riser Clmap
Size Range: from 1/2" to 6"
Material: Carbon Steel
Color: Sliver or Black
Standard for Safty: UL 2239 and CSA C22.2 No. 18.4-15 - Hardware for the Support of Conduit, Tubing, and Cable
Certificate Reference: E489690
Applications:
It's designed for the support or steadying of vertical pipe risers. It is made of carbon steel and is designed to hold tight to the pipe, transmitting the load to the structure through the ears on each end. When possible the clamp should be placed under a coupling, hub, or lugs welded to the pipe.
Specifications:
ITEM | Pipe Size |
O.D .in |
O.D MM |
WIDTH MM |
T.H MM |
Bolt |
RC50 | 1/2″ | 0.840 | 21.336 | 25.00 | 4.00 | 3/8"1-1/4" |
RC75 | 3/4″ | 1.050 | 26.670 | 25.00 | 4.00 | 3/8"1-1/4" |
RC100 | 1″ | 1.315 | 33.401 | 25.00 | 4.00 | 3/8"1-1/4" |
RC125 | 1-1/4″ | 1.660 | 42.164 | 25.00 | 4.00 | 3/8"1-1/4" |
RC150 | 1-1/2″ | 1.900 | 48.260 | 25.00 | 4.00 | 3/8"*1-1/2" |
RC200 | 2″ | 2.375 | 60.325 | 25.00 | 4.00 | 3/8"*1-1/2" |
RC250 | 2-1/2″ | 2.875 | 73.025 | 25.00 | 6.00 | 3/8"*1-1/2" |
RC300 | 3″ | 3.500 | 88.900 | 25.00 | 6.00 | 3/8"*1-1/2" |
RC350 | 3-1/2" | 4.000 | 101.600 | 25.00 | 6.00 | 1/2"*1-3/4" |
RC400 | 4″ | 4.500 | 114.300 | 25.00 | 6.00 | 1/2"*1-3/4" |
RC500 | 5″ | 5.562 | 141.275 | 38.00 | 6.00 | 1/2"*1-3/4" |
RC600 | 6″ | 6.625 | 168.275 | 38.00 | 6.00 | 1/2"*2" |
Competitive Advantage:
+Quick Delivery: 30days for one 20ft container.
+Competitive Price
+ Good Quality:
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
