Product Details:
Payment & Shipping Terms:
|
Material: | Steel | Type: | Unistrut Channel Fittings |
---|---|---|---|
Fitting Type: | Conduit Hanger | Surface Treatment: | Electro-galvanized |
Size: | 1/2"-4" | Standard: | ISO Standard |
High Light: | strut pipe clamp,stainless steel unistrut |

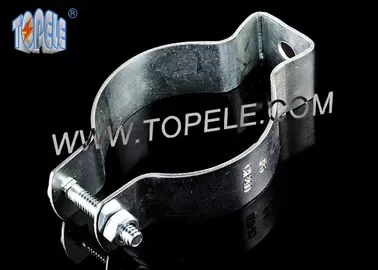

Custom Electro-galvanized Steel Standard Conduit Hangers (Bolt and Nut) Unistrut Channel Fittings
Conduit hanger
Material: electro-galvanized steel
Material: Steel with Steel Nut & Bolt
Finishing: Galvanized
Size:2"
1/2"-4"Conduit Hanger Available
Field Names:
Conduit hangers, cowboy hangers, mae west hangers, minnies, stand off straps, standard conduit hangers, minis, pipe hangers.
Applications:
These conduit hangers are used in both wet and dry locations to support runs of rigid/IMC and EMT conduits from ceilings and walls.
Specifications:
Part number |
EMT Conduit |
Rigid Conduit |
Std. |
CH-50 |
1/2” |
3/8” or 1/2” |
50 |
CH-75 |
3/4” |
3/4” |
25 |
CH-100 |
1” |
1” |
25 |
CH-125 |
1-1/4” |
|
25 |
CH-150 |
1-1/2” |
1-1/4” |
25 |
CH-175 |
|
1-1/2” |
25 |
CH-200 |
2” |
2” |
25 |
CH-250 |
2-1/2” |
2-1/2” |
10 |
CH-300 |
3” |
3” |
10 |
CH-350 |
3-1/2” |
3-1/2” |
10 |
CH-400 |
4” |
4” |
5 |
