1/2" To 2" Conduit Sealing Fittings 90 Degree Zinc Die Cast EMT / IMC Pull Elbow
| Product Name: | IMC Pull Elbow | Brand Name: | TOPELE |
| Size: | 1/2" To 2" | Type: | Inspection Fitting |
| Origin: | Made In China | ||
| High Light: | explosion proof conduit fittings,liquid tight flexible conduit |
||
1/2" to 2" 90 Degree Zinc Die Cast IMC / Rigid Pull Elbow IMC Conduit And Fittings

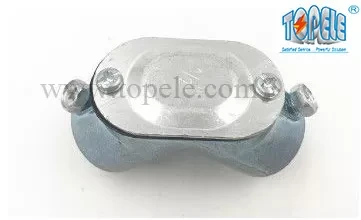

IMC/RIGID Pull Elbow
Set screw zinc IMC inside corner
1. Material: Zinc
2. Size:1/2'', 3/4'', 1''
3. Used to connect two IMC conduit in corner
Application:
These set-screw IMC pull elbows are used when 90° turns are needed in conduits and when wires must be pulled through elbows before making the turn into the electrical junction box or enclosure.
Field Names: Pull elbow, IMC handy ells, IMC set-screws ells, Jakes, IMC Jakes.
Material: Die-cast zinc
Specifications:
|
IPE-50 |
1/2" |
|
IPE -75 |
3/4" |
|
IPE -100 |
1" |
|
IPE -125 |
1-1/4" |
|
IPE -150 |
1-1/2" |
|
IPE -200 |
2" |
Advantage:
TOPELE’S set-screw pull elbows come ready with a gasket and cover that seals out dirt, dust and moisture. This removable gasket and cover allow for wires to be pulled and fed back into pipes changing the direction as they enter boxes or enclosures. The locknut feature on TOPELE’S pull elbows secures the connection.
