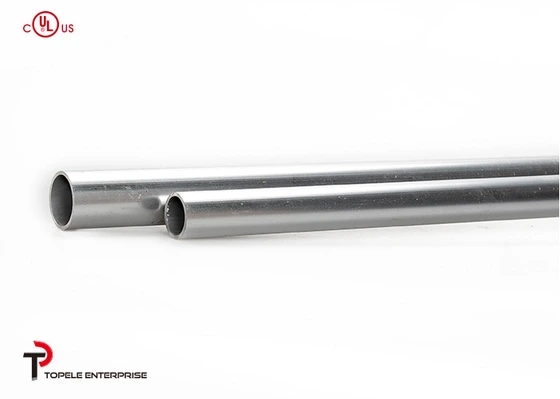

3/4 Inch 1 Inch Aluminum EMT Conduit Smooth Treat EMT Conduit And Fittings

3/4 Inch 1 Inch  Aluminum EMT Conduit Smooth Treat EMT Conduit And Fittings
3/4 Inch 1 Inch  Aluminum EMT Conduit Smooth Treat EMT Conduit And Fittings

Large Image :  3/4 Inch 1 Inch Aluminum EMT Conduit Smooth Treat EMT Conduit And Fittings

Product Details:
Place of Origin: Zhejiang ,china
Brand Name: TOPELE
Certification: ISO CERTIFICATE
Model Number: EMT ALUMINUM CONDUIT
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: negotiable
Packaging Details: Small bundles with white plastic bag
Delivery Time: 20 days for one 20ft container
Payment Terms: TT/LC AT SIGHT
Supply Ability: 200 tons one month
Detailed Product Description
Material: Aluminum Surface Treatment: Aluminum
Length: 10 Ft Type: Electrical Pipe
Thickness: 0.85-2.11mm Size: 1/2-4 Inch
Standard: UL797 Feature: Super Strong Anticorrosion
High Light:

explosion proof conduit fittings

,

electrical conduits and fittings



3/4 inch 1 inch EMT Conduit And Fittings Aluminum EMT conduit smooth treat







Description:

3/4 inch 1 inch EMT Conduit And Fittings Aluminum EMT conduit smooth treat



 EMT conduit pipe is one of the lightest and thinnest threading pipe in American standard. The pipe head has no thread, and it is connected with set screw type connector which is mostly used in indoor decoration.



Aluminum conduit, similar to galvanized steel conduit, is a rigid tube, generally used in commercial and industrial applications where a higher resistance to corrosion is needed. Such locations would include food procesing plants, where large amounts of water and cleaning chemicals would make galvanized conduit unsuitable. Aluminum cannot be directly embedded inconcrete , since the metal reacts with the akalise  in cement. The conduit may be coated to prevent corrosion by incidental contact with concrete. Aluminum conduit is generally lower cost than steel in addition to having a lower labor cost to install, since a length of aluminum conduit will have about one-third the weight of an equally-sized rigid steel conduit.

  • The main markets of EMT Aluminum conduit  are Latin America, South America, America, dubai and other middle eastern countries
  • Corrosion resistance
  • long-lasting protection
  • Approximately one-third the weight of steel, light weight.
  • 10' lenghts, with special lenght available
  • Easy to Install – Can be easily cut, bend without special tools

Key words: ALUMINUM CONDUIT , ALUMINUM PIPE, ALUMINUM TUBE, EMT CONDUIT,  EMT PIPE ,  EMT TUBE ,  ELECRICAL METALLIC TUBING.LIGHT WEIGHT CONFUIT.



Applications:



TOPELE EMT  Aluminum conduit is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This EMT CONDUIT is made of aluminum alloy, it has a strong corrosion resistance,and light weught help people wasy to intall.



From thickness, TOPELE have standard and thiner for  customer choose,the thickness can also be customized according to the customer's requirements.

From the surface treatment, TOPELE have hot dipped Galvanized (HDG) and the Pre- galvanized.





Specifications:

  • Standard: 1/2"-4" EMT ALUMINUM  CONDUIT X 10'  / UL797&C80.3-1983
  • Brand Name: TOPELE
  • Color Family : Metallics
  • Conduit type : Metallic
  • Type : Conduit
  • Flexible : No
  • Length : 10 ft.
  • Material : aluminum
  • Size: from 1/2" to 4 "



Nominal diameter External diameter Wall Thickness Length Packing Weight/Unit(kg)

1. EMT Tube(Electrical metallic tubing) standard pipe
1/2" 17.93mm 1.07mm 3.05m 20pcs/bundle 1.36
3/4" 23.42mm 1.24mm 3.05m 15pcs/bundle 2.07
1" 29.54mm 1.45mm 3.05m 10pcs/bundle 3.06
1-1/4" 38.35mm 1.60mm 3.05m 5pcs/bundle 4.56
1-1/2" 44.2mm 1.65mm 3.05m 5pcs/bundle 5.28
2" 55.8mm 1.65mm 3.05m 5pcs/bundle 6.78
2-1/2" 73.03mm 1.83mm 3.05m 1pcs/bundle 9.8
3" 88.9mm 1.83mm 3.05m 1pc 11.98
3-1/2" 101.6mm 2.11mm 3.05m 1pc 15.79
4" 114.3mm 2.11mm 3.05m 1pc 17.8



Nominal diameter External diameter Thickness of wall Length Packing Weight/Unit(kg)
EMT Tube - thin wall thickness pipe
1/2" 17.93mm 0.85mm 3.05m 20pcs/bundle 1.092
3/4" 23.42mm 1mm 3.05m 15pcs/bundle 1.499
1" 29.54mm 1.1mm 3.05m 10pcs/bundle 2.353
1-1/4" 38.35mm 1.30mm 3.05m 5pcs/bundle 3.623
1-1/2" 44.2mm 1.30mm 3.05m 5pcs/bundle 4.195
2" 55.8mm 1.40mm 3.05m 5pcs/bundle 5.728






Competitive Advantage:



EMT AluminumConduit

+Quick Delivery: 15days for one 20ft container.
+Competitive Price

+ Good Quality: ISO certificate approval

+Best Service: fast delivery, strong package, good price, timely and effective communication

+Powerful Solution: fast and effective solution to problem

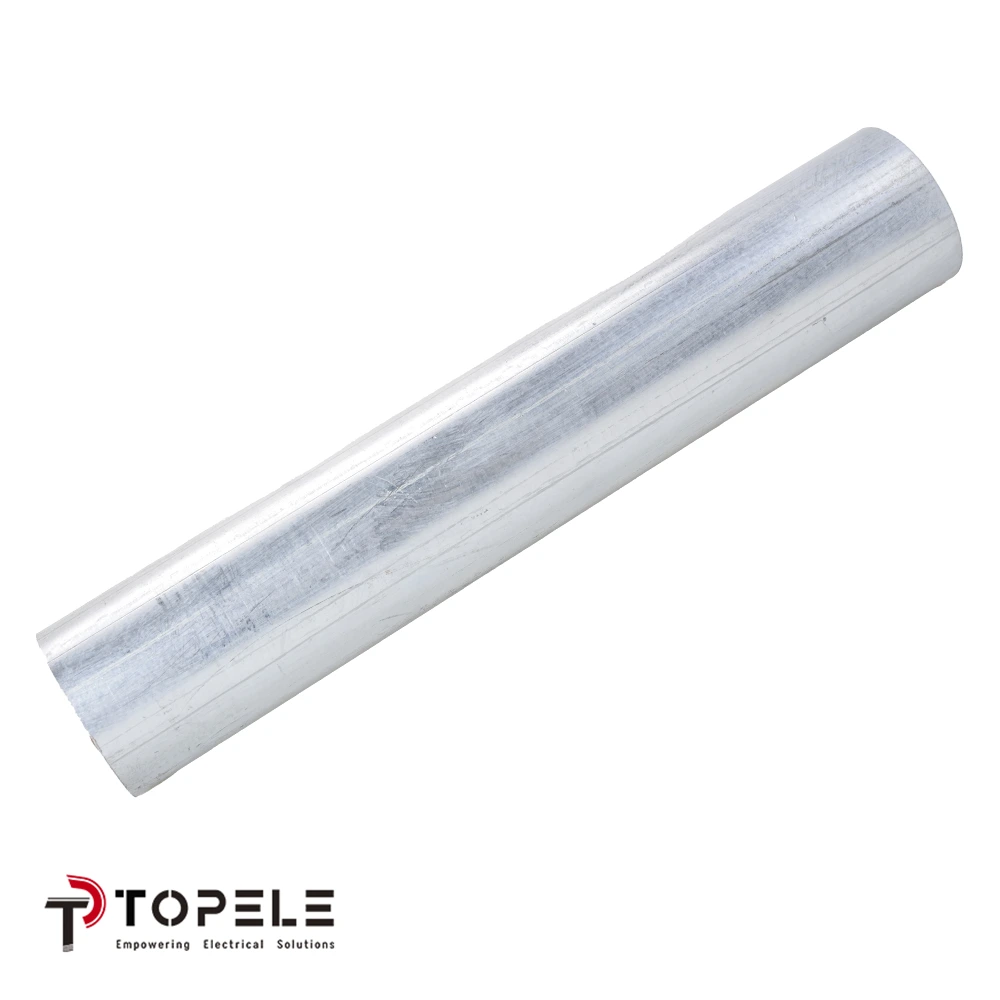

3/4 Inch 1 Inch  Aluminum EMT Conduit Smooth Treat EMT Conduit And Fittings 0

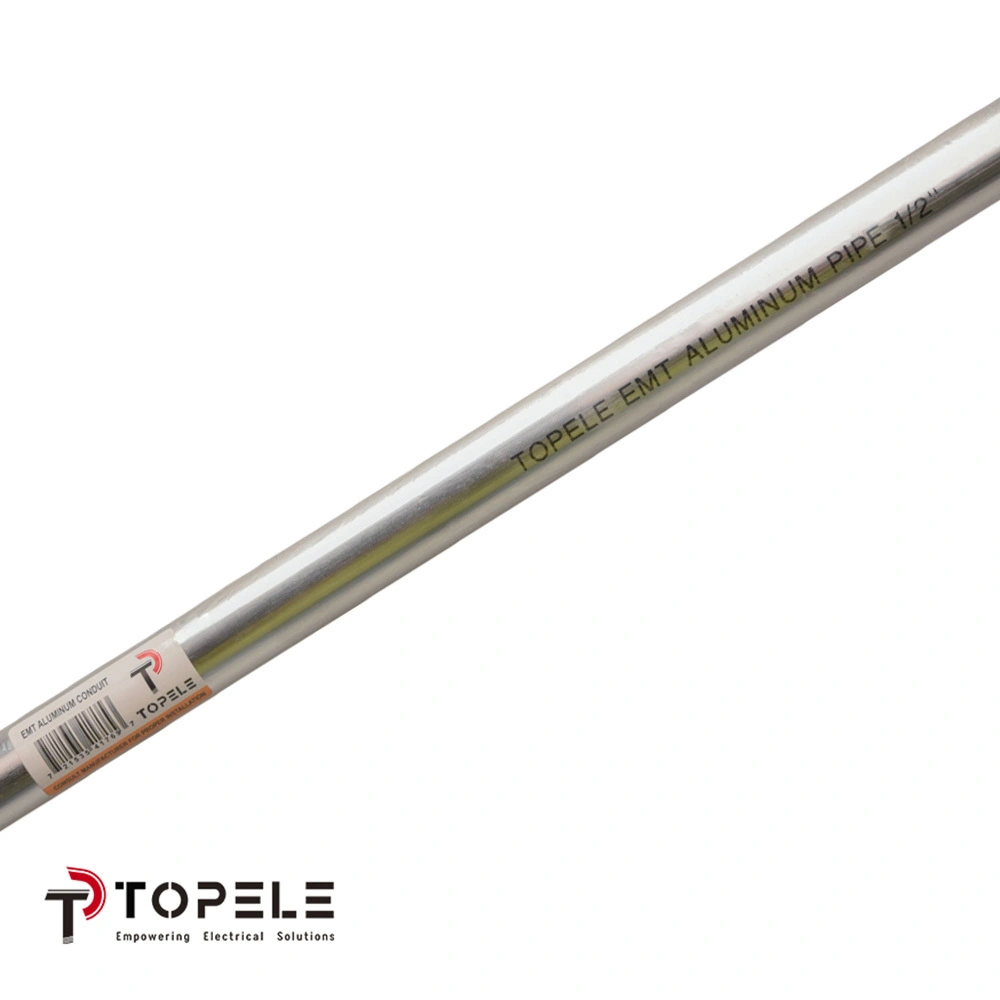

3/4 Inch 1 Inch  Aluminum EMT Conduit Smooth Treat EMT Conduit And Fittings 1
