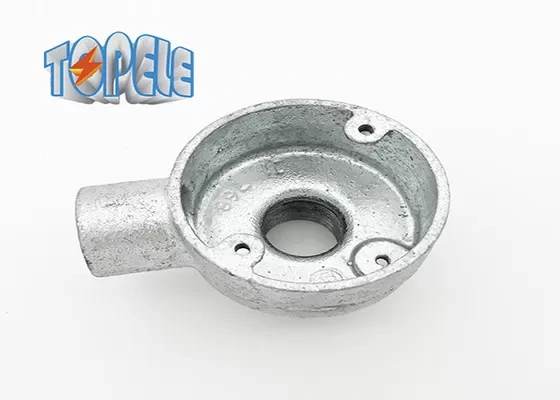

Long Life BS4568 Conduit Malleable Iron 20mm 25mm Terminal And Back Outlet Box

BS 4568 conduit Malleable iron boxes 20mm 25mm terminal and back outlet box

Description:

Malleable iron boxes 20mm branch 3 way / Y way box BS conduit box

Marking: TOPELE, as customer request, can open mold as customer own brand.

Material: Malleable Iron

Finish: Hot-dip Galvanized, Aluminum

Standard: BS4568/BS31

Size: 20mm, 25mm, 3/4”, 1”

60.3mm Internal Diameter x 25.4mm Deep Tapped M4 in mm sizes and 2BA in imperial sizes of 50.3mm with tapped hole in base for earthing screw.

More BS conduit Fittings

BS31 Alumnum fitting- 3/4" , 1" aluminum circular box

Note:

1.With tapped hole in base for earthing screw.

2.Supplied without covers or fixing screws unless ordered.

3.Order 3/4" & 1" when using with BS31 Conduits.

4.Order 20mm,25mm when using with BS4568 Conduits.

5.BS31 boxes also available in cast Iron & finish galvanized coating.

6.Box Covers are available 1.0/1.2mm thickness, finish Hot-Dipped Galvanized;

7.Each box is supplied C/W one regulation Tap Earth Terminal Hole in base;

8.Small and large Circular Boxes available;

9.Deep pattern Boxes available;

10.Full range of Conduit Fittings(Saddles) available to suit different site needs;

11.Good range of other supporting Conduit Fittings available.

Applications:

BS 4568 conduit Malleable iron boxes 20mm 25mm terminal and back outlet box

to protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction and provide access to conductors for maintenance and future system change.

Competitive Advantage:

BS 4568 conduit Malleable iron boxes 20mm 25mm terminal and back outlet box

1.Price: Competitive&Reasonable
2.Quality: Quality assured in each process
3.Material:Zinc,Alum,Steel,Malleable
4.MOQ:Small orders acceptable
5.Delivery:In time
6.After service:Be responsible for each problem encountered and help to settle
