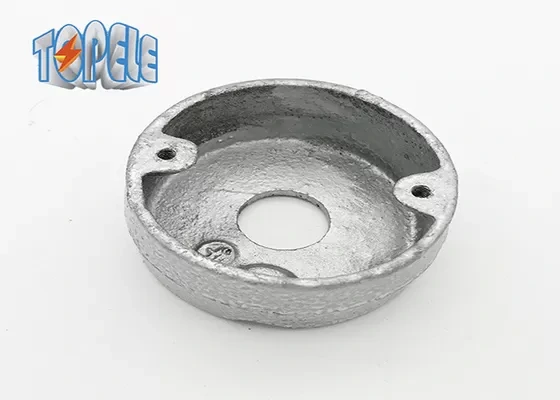

BS Gi Conduit Fittings Malleable Iron Hot Dip Galvanized Loop In Boxes 1- 4 Konckouts

BS Gi Conduit Fittings Malleable Iron Hot Dip Galvanized Loop In Boxes 1- 4 Konckouts
BS Gi Conduit Fittings Malleable Iron Hot Dip Galvanized Loop In Boxes 1- 4 Konckouts BS Gi Conduit Fittings Malleable Iron Hot Dip Galvanized Loop In Boxes 1- 4 Konckouts BS Gi Conduit Fittings Malleable Iron Hot Dip Galvanized Loop In Boxes 1- 4 Konckouts

Large Image :  BS Gi Conduit Fittings Malleable Iron Hot Dip Galvanized Loop In Boxes 1- 4 Konckouts

Product Details:
Place of Origin: Zhejiang ,china
Brand Name: TOPELE
Certification: iso
Model Number: TP101--128
Payment & Shipping Terms:
Minimum Order Quantity: 1000 PCS
Price: negotiable
Packaging Details: Carton
Delivery Time: 25 days
Payment Terms: TT/LC at sight
Supply Ability: 50000pcs per day
Detailed Product Description
Material: Malleable Iron / Aluminum Size: 20mm 25mm 32mm
Model: Malleable Iron Box Looping In Boc Shape: Circular
Standard: BS Finish: Hot Dip Galvanized
Application: Electrical Contrustion Product Name: BS 4568 Circular Junction Box
Type: 1-4 Knockouts
High Light:

20mm galvanised conduit

,

galvanized steel pipe

BS Malleable iron hot dip galvanized loop in boxes 1- 4 konckouts

Description:

BS Malleable iron hot dip galvanized loop in boxes 1- 4 konckouts



Marking: TOPELE, as customer request, can open mold as customer own brand.

Material: Malleable Iron

Finish: Hot-dip Galvanized, Aluminum

Standard: BS4568/BS31

Size: 20mm, 25mm, 3/4”, 1”

60.3mm Internal Diameter x 25.4mm Deep Tapped M4 in mm sizes and 2BA in imperial sizes of 50.3mm with tapped hole in base for earthing screw.





BS Gi Conduit Fittings Malleable Iron Hot Dip Galvanized Loop In Boxes 1- 4 Konckouts 0



More BS conduit Fittings

BS Gi Conduit Fittings Malleable Iron Hot Dip Galvanized Loop In Boxes 1- 4 Konckouts 1









Note:

1.With tapped hole in base for earthing screw.

2.Supplied without covers or fixing screws unless ordered.

3.Order 3/4" & 1" when using with BS31 Conduits.

4.Order 20mm,25mm when using with BS4568 Conduits.

5.BS31 boxes also available in cast Iron & finish galvanized coating.

6.Box Covers are available 1.0/1.2mm thickness, finish Hot-Dipped Galvanized;

7.Each box is supplied C/W one regulation Tap Earth Terminal Hole in base;

8.Small and large Circular Boxes available;

9.Deep pattern Boxes available;

10.Full range of Conduit Fittings(Saddles) available to suit different site needs;

11.Good range of other supporting Conduit Fittings available.







Applications:



BS Malleable iron hot dip galvanized loop in boxes 1- 4 konckouts

to protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction and provide access to conductors for maintenance and future system change.









Competitive Advantage:



BS Malleable iron hot dip galvanized loop in boxes 1- 4 konckouts

1.Price: Competitive&Reasonable
2.Quality: Quality assured in each process
3.Material:Zinc,Alum,Steel,Malleable
4.MOQ:Small orders acceptable
5.Delivery:In time
6.After service:Be responsible for each problem encountered and help to settle
