Product Details:
Payment & Shipping Terms:
|
Material: | Galvanized Steel-class 3 / Hot-dipped Galvanized-class 4 | Size: | 16mm To 32mm |
---|---|---|---|
Length: | 3.75 Meters | Product Name: | BS4568 Conduit |
Brand Name: | TOPELE | Filed Name: | BS4568 CONDUIT,BS4568 TUBE, BS4568 PIPE, GI PIPE, GI TUBE |
Highlight: | galvanized rigid conduit,20mm galvanised conduit |

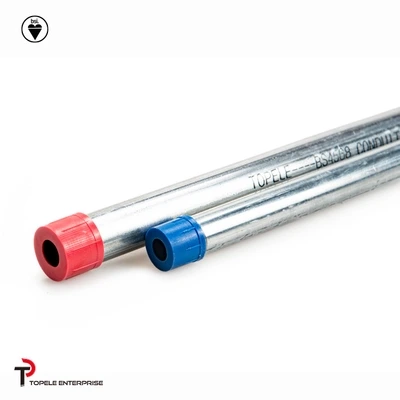

Galvanized Steel BS4568 Conduit / BS4568 TUBE / GI PIPE With Protection Cap
BS4568 CONDUIT with a integral coupling and a protection cap
Applications:
TOPELE BS4568 CONDUIT is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This BS4568 CONDUIT is made of Pre-galvanized steel and has an organic coating inside.
BS4568 CONDUIT provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields and features electroplated couplings to resist build up of zinc on the threads.
Specifications:
nominal diameter |
external diameter |
thickness of wall |
length |
packing |
weight/unit(kg) |
BS4568-1970 CONDUIT |
|||||
16mm |
16mm |
1.6mm |
3.75 |
10pcs/bundle |
2.13 |
20mm |
20mm |
1.6mm |
3.75 |
10pcs/bundle |
2.72 |
25mm |
25mm |
1.6mm |
3.75 |
10pcs/bundle |
3.46 |
32mm |
32mm |
1.6mm |
3.75 |
10pcs/bundle |
4.50 |
Remark: different thickness is available
Competitive Advantage:
BS4568 CONDUIT
+Quick Delivery: 15days for one 20ft container.
+Competitive Price
+ Good Quality: ISO
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
