Material: | Steel | Color: | Grey |
Size: | 1/2''-4'' | Standard: | UL |
Finish: | Pre Galvanized | ||
High Light: | 1/2'' EMT Conduit And Fittings,Steel Emt Conduit And Fittings,1/2'' emt connector |
Product | EMT Coupling |
Material | Steel |
Size | 1/2''-4'' |
Finish | Pre galvanized |
Product Details

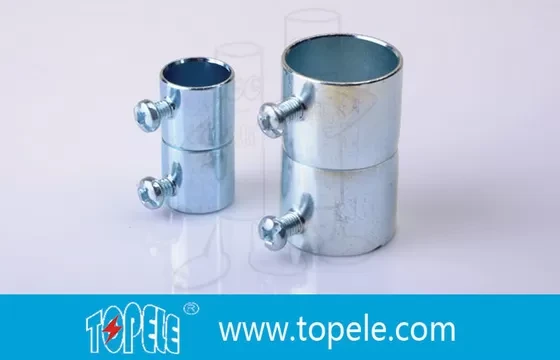

TOPELE EMT set screw coupling is UL listed, producing in according with UL 514B and C22.2 No. 18.3-12 Conduit, Tubing, and Cable Fittings.
EMT set-screw coupling is used in dry locations to join two lengths of EMT electrical conduits. The setscrew coupling can be used in concrete tight applications when taped. TOPELE manufactures set screw type EMT couplings in steel, zinc and aluminum, which can meet all your requirements in different markets.
The steel EMT coupling set screw type is available from 1/2" up to 4". EMT set screw coupling sizes 2-1/2" to 4" is also fit for Rigid Metal Conduit and Intermediate Metal Conduit.
CAT# | SIZE |
SSCP-50S | 1/2'' |
SSCP-75S | 3/4'' |
SSCP-100S | 1'' |
SSCP-125S | 1-1/4'' |
SSCP-150S | 1-1/2'' |
SSCP-200S | 2'' |
SSCP-250S | 2-1/2'' |
SSCP-300S | 3'' |
SSCP-350S | 3-1/2'' |
SSCP-400S | 4'' |
Application
*Steel EMT Set Screw Couplings are used in dry locations to connect the ends of two EMT thinwall conduits together to extend the raceway.
*Our steel set screw couplings provide concrete tight connections when taped and properly secured with the included set screws, and are rated for electrical applications above 600 volts.
* Their heavy gauge steel construction maintains mechanical protection and solid grounding of one conduit to another.
* They are also zinc electroplated for excellent corrosion protection in damp locations.
* Set screw couplings are made with a versatile combination head screw that can securely fasten one conduit to another using a slotted, Phillips, or Robertson head screw driver.
