Stainless Steel 2 Inch 2 Hole Conduit Strap Hanger
| Product Name: | 2 Inch Conduit Hanger | Size: | 1/2’’-4’’ |
| Product Brand: | TOPELE | Material: | Steel |
| Application: | Construction | ||
| High Light: | 2 hole conduit strap,two hole conduit strap,2 inch conduit strap |
||
Description

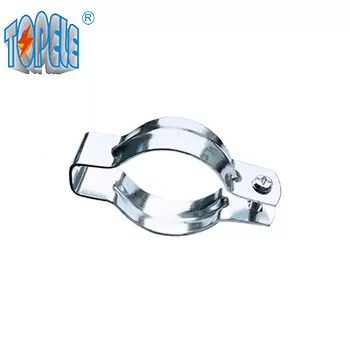

Conduit hanger is used to connect metal pipe with tooth and profile steel. Topele's conduct hanger has good quality and favorable price. The fastness is not easy to deform and corrode
|
Cat.No. |
Conduit Size Inch mm MIN MAX |
||
| CH-050 | 1/2’’ | 17.93 | 21.34 |
| CH-075 | 3/4’’ | 23.42 | 26.67 |
| CH-100 | 1’’ | 29.54 | 33.4 |
| CH-125 | 1-1/4’’ | 38.35 | 42.16 |
| CH-150 | 1-1/2’’ | 44.19 | 48.26 |
| CH-200 | 2’’ | 55.8 | 60.33 |
| CH-250 | 2-1/2’’ | 73.3 | |
| CH-300 | 3’’ | 88.9 | |
| CH-350 | 3-1/2’’ | 101.6 | |
| CH-400 | 4’’ | 114.3 | |
Application
Used for tighting the emt conduit pipe to the strut channel.
Each 2 inch conduit hanger can stamp directly of the customer's brand.
TOPELE 2 inch conduit hanger come with screw and nut
Advantages:
+Topele’s Galvanized / zinc plated steel construction provides mechanical protection for the conduit straps. Topele’s two-hole conduit strap design allows the installer to easily position the strap before mounting pipes on walls. Additionally, the oversized bolt-hole design makes conduit alignment with box knockout quick and easy.
+Best Service: strong package, timely and effective communication
+Powerful Solution: fast and effective solution to problem
FAQ
Q:Where is the Topele factory?
A:Our fitting factory is in Hangzhou, and our pipe factory is in Jiangsu.
Q:Why choose your company?
A:We are factory directly ,so the price is lower, and the products are rich in variety and be changeable in specifications.
Q:Does Topele have a certificate? What kind of certificate?
A:We have 8 UL certificates, our products are manufactured in strict accordance with UL standards, our products are exported to many countries, the quality response is very good.
