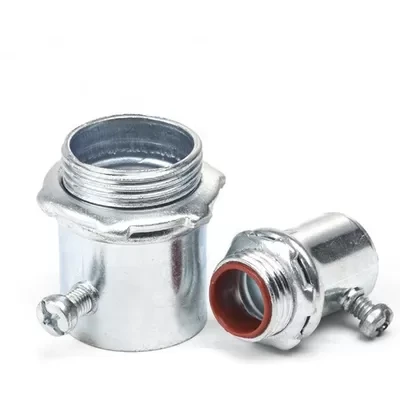

Conduit Zinc Aluminum 1/2''-4'' Emt Set Screw Connector
| Material: | Zinc/Aluminum | Standard: | UL |
| Color: | Grey | Size: | 1/2''-4'' |
| Sample: | Free | ||
| High Light: | 1/2" emt set screw connector,4" emt set screw connector,Aluminum emt set screw connector |
||
Description
| PRODUCT | EMT connector |
| MATERIAL | Zinc die cast |
| TYPE | Set screw type |
| Size | 1/2''-4'' |
TOPELE set screw connector is part of UL listed EMT fittings. The set screw EMT connector is manufactured according to UL Conduit, Tubing, and Cable Fittings.
EMT screw connector is used in dry locations to bond Electrical Metallic Tubing to an electrical box. TOPELE can provide TOPELE connector in steel, zinc and aluminum that it can meet all your requirements in different markets.
The steel EMT set screw connector provides concrete tight protection when taped and is available in trade sizes 1/2" through 4". EMT connector set screw type sizes 2-1/2" to 4" is also suitable for Rigid and IMC Conduits
| CAT# | SIZE |
| SSCN-50/50A | 1/2'' |
| SSCN-75/75A | 3/4'' |
| SSCN-100/100A | 1'' |
| SSCN-125/125A | 1-1/4'' |
| SSCN-150/150A | 1-1/2'' |
| SSCN-200/200A | 2'' |
| SSCN-250/250A | 2-1/2'' |
| SSCN-300/300A | 3'' |
| SSCN-400/400A | 4'' |
TOPELE department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.
The thread of the connector follows the NPT standard.
Payment Terms:T/T,L/L atsight
Shipping Terms:FOB, CFR (CNF, C&F), CIF,EXW
FAQ
Q:Where is the Topele factory?
A:Our fitting factory is in Hangzhou, and our pipe factory is in Jiangsu.
Q:Why choose your company?
A:We are factory directly ,so the price is lower, and the products are rich in variety and be changeable in specifications.
Q:Does Topele have a certificate? What kind of certificate?
A:We have 8 UL certificates, our products are manufactured in strict accordance with UL standards, our products are exported to many countries, the quality response is very good.
