Structure: | Single-side Bracket | Surface Treatment: | Hot Dipped Galvanized |
Thickness: | 3mm-5mm | Type: | 2 Hole |
Color: | Silver, Grey Or As Order | Treatment: | Zinc Coating |
High Light: | 3mm unistrut channel connectors,2 Hole unistrut channel connectors,Hot Dipped galvanized unistrut connectors |
Product Details

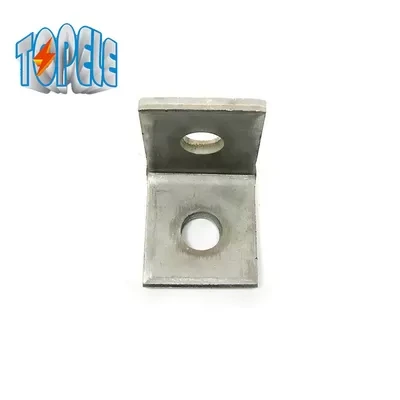

2 hole end angle Connector for Strut Unistrut Connecting Plate
Place of Origin:Zhejiang,China
Brand Name:Topele
Model Number:TP-301
Structure:Single-side Bracket
Standard or Nonstandard: standard
Product name:2 hole end angle Connector for Strut
Surface treatment:Hot Dipped galvanized
Thickness:3mm-5mm
Certification:ISO9001:2008
Keywords:corner clamp
Material:Stainless steel 201 or 304 or 316
Size:customized
Supply Ablity:10000 pieces per Month
Packing:Each item of product packed inside a bubble bag, then inside the standard carton,we could arrange pallet if you want.
Package Safety: Anti-theft & Anti-riot
QC Pass Rate:100% inspection before delivery
Delivery Way:By vessel, by air, by express,it depends on you.
Shipping Port:Shanghai,Ningbo,China
Payment term :T/T 50% to confirm the order, 50% balance payment upon copy of BL.
Material: | Steel | Treatment: | Zinc Coating |
Function: | Struct Channel Fitting | Color: | Silver, Grey Or As Order |
Place Of Origin: | Zhejiang China( Mainland) | Type: | Ventilated Or Perforated Trough |
Width: | 5/8", 13/16", 13/32" | Quality: | International Standard |
Description:
2 hole end angle Connector for Strut Unistrut Connecting Plate
1.Thickness is 6.35mm, hole spacing on center is 47.6mm, hole spacing from end is 20.6mm, width is 40 mm and steel grade is Q235 for all general fittings but special specification.
2.Hole diameter is 11mm for M10 fittings,13mm for M12 fittings but special specification.
3.The series are all manufacture from low-carbon steel with galvanized finish.
4.The series are also available in stainless steel. If you need special application fittings, contact us for size.
Applications:
2 hole end angle Connector for Strut Unistrut Connecting Plate
Steel plate Fittings are mainly used to connect the strut channels on the pipe supporting Systems
