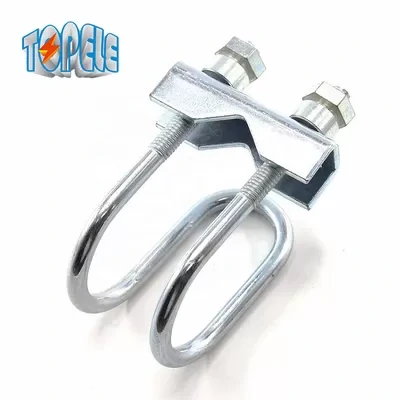

Electro Galvanized 1'' Carbon Steel Seismic Sway Brace Pipe Attachment

Seismic Sway Brace Pipe Attachment

Quick Details

Place of Origin:Zhejiang,China

Brand Name:TOPELE

Material:Carbon steel

Standard or Nonstandard:Standard

Size:1''-6''

Finish:Electro-galvanized

Sample:Availble

Packing:Carton + Pallet

Function:bracing pipe against sway and seismic disturbance

​

Packaging & Delivery

Packaging Details:

Carton + Pallet

Port:

Tianjin

FUNCTION

Designed for bracing pipe against sway and seismic disturbance. The pipe attachment component of a sway brace system used in conjunction with a PHD Manufacturing structural attachment fitting, and joined together with a bracing pipe element forms a complete sway brace assembly.

MATERIAL: Carbon steel

FINISH: Electro-galvanized

Size: Pipe size 1” (25) thru 6” (150).

Install: Place over the pipe to be braced, adjust brace angle, and insert bracing pipe through opening leaving a minimum of 1” (25.4) extending from attachment. Brace pipe can be installed on top or bottom of pipe to be braced but must be a minimum of 6” (152.4) away from a pipe joint. Tighten nuts down evenly until hex heads break off.
