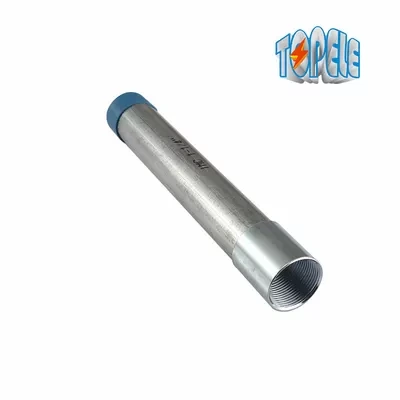

BS 4568 Galvanised Metal Electrical Conduit Pipe With Screwed Ends And Caps
| Size: | 20mm, 25mm,32mm, 3/4â€, 1â€,1-1/4†| Material: | Carbon Steel |
| Finish: | Pre-Galvanized , Hot Dip Galvanized ( HDG ) | Standard: | BS4568:1970/BS31:1940 |
| High Light: | BS 4568 Metal Electrical Conduit Pipe,galvanised electrical conduit pipe,galvanised Metal Electrical Conduit Pipe |
||
BS 4568 Hot Dip Galvanized Metal Conduit Pipe With Screwed Ends And Caps
Detailed Product Description
| Material: | Steel | Standard: | BS 4568 /BS 31 |
| Size: | 20mm.25mm.32mm | Type: | Conduit |
| Application: | Electric Cable Wire | Feature: | Corrosion Resistant |
| Length: | 3.75m | Usage: | Electrical Wire Protection |
| Notes: | Available On Both Class 3 And Class 4 | Section Shape: | Round |
BS 4568 / BS 31 Hot Dip Galvanized Metal Conduit Pipe With Screwed Ends And Caps
Description:
TOPELE BS4568/BS31 conduit
Marking: TOPELE
Material: Carbon steel
Finish:Pre-Galvanized , Hot dip Galvanized ( HDG )
Standard: BS4568:1970/BS31:1940
Size: 20mm, 25mm,32mm, 3/4”, 1”,1-1/4”
Note:
1.With tapped hole in base for earthing screw.
2.Supplied with covers and fixing screws.
3.Order 3/4" & 1" when using with BS31 Conduits.
4.Order 20mm,25mm when using with BS4568 Conduits.
5.BS31 boxes also available in cast Iron & finish galvanized coating.
6.Box Covers are available 1.0/1.2mm thickness, finish Hot-Dipped Galvanized;
Feature
1) Heavy corrosion protection by Hot-Dip Galvanizing on the exterior and medium corrosion protection by applying and organic coat on the interior surface of the conduit for Class3;
Heavy corrosion protection by Hot-Dip Galvanizing on the exterior and interior surface of the conduit for Class4.
2) Threaded on both ends, one end fitted with coupling and the other protected by plastic end cap.
3) Metric size threading.
4) Offer all kinds of packing.
BS4568 electrical steel conduit tube
1.Standard:BS/EN4568
2.Tade Size : 16,20,25,32,40,50
3.Both ends: threaded both ends with one coupling and plastic cap
4.Length: 3750mm or customized according to your requirements
5.Usage: through the electrical wires with the purpose of protection for the electrical raceway system and can replace the gas pipes for underground water
6.Surface finished: Class 3pip for Pre-galvanized and Class 4 pipe for the hot dip galvanized, inside and outside the re-grade anti-corrosion, warranty period more than 30 years..
7.Material : carbon steel coil
8.Inner welded bead:Within the weld bead does not exceed 0.3mm
9.Delivery time: 20 to 30 days after we receive your advance payment or copy of L/C
10.Payment Term: L/C at sight or T/T
11.Package: the conduits coverd with pvc paper then tied with steel straps
