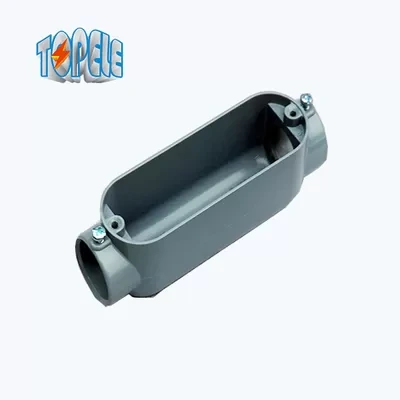

UL Approval EMT Rigid Conduit Body Threaded Or Set Screw
| Material: | Aluminum Die Cast /Malleable Iron | Standards: | UL |
| Type: | Threaded/Set-Screw/Combination | Name: | UL Approval EMT Rigid Conduit Body Threaded Or Set Screw |
| High Light: | UL emt conduit body,UL Rigid Conduit Body,Set Screw Rigid Conduit Body |
||
UL Approval EMT Rigid Conduit Body Threaded or Set-Screw
Detailed Product Description:
| Brand Name: | TOPELE | Material: | Aluminum Die Cast /Malleable Iron |
| Standard: | UL NO. E506419 | Size: | 1/2'',3/4'',1'',1-1/4'',1-1/2'',2'',2-1/2'',3'',4'' |
| Type: | Threaded/Set-Screw/Combination |
Name:Conduit Body
Material: Aluminum Die Cast /Malleable Iron
Standards: UL
Size:1/2'',3/4'',1'',1-1/4'',1-1/2'',2'',2-1/2'',3'',4'',(SLB:1/2''-2'')
Type:Threaded/Set-Screw/Combination
Product Description
Electrical EMT conduit body lb type
Standard Materials:
* Body: Malleable iron or gray iron
* Cover: Stamped steel or malleable iron or gray iron
* Cover screw: Galvanized steel or stainless steel
* Gasket: Neoprene
Standard Finish:
* Body: Hot-dipped galvanized & zinc electroplate
Zinc electroplate & enamel coat
* Cover: Zinc electroplate or pre-galvanized
Conduit body Standards:
ANSI, UL514A, NEMA FB-1, CSA C22.2 No.18.3
Application:
* Serve as pulling fittings
* Make bends in conduit system
* Provide openings for splicing
* Connect and change direction of conduit runs
* Allow connections for branch runs
* Permit access to conductors for maintenance
Features:
* Tapered threaded hubs - NPT
* Suitable for use in concrete
* Smooth, rounded integral bushings in hubs protect conductor insulation
* Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
* Flat back design provides greater cubic content for easier wire pulling, and more room for splicing. Fits flush and snug against flat surfaces for more stable installation
* Covers with gaskets are approved for use in wet locations
* Smooth hub bushings and cover openings protect conductor insulation. Smooth hub openings allow easy conduit joining
Applications:
To provide access to conductors for pulling, splicing and maintenance.
Features
1.Have different type : LB ,LL , LR , T , C .SLB
2.Diecast copperfree aluminum bodies with epoxy powder coat finish, stamped aluminum covers with natural finish, neoprene gaskets
3.Threaded hubs with set-screws
4.Packaged complete under one catalog number and ready to use
5.Compact, with flat back design for easy mounting close to walls and a spacious interior for easy wiring
6.High strength, corrosion and weather resistant
7.Available in five configurations with industry trade sizes 1/2" through 4“
8.Steel pan-head screws secure cover to body and provide superior screwdriver seating and torque; cover screws prevent loss
Competitive Advantage:
1.removable cover makes general maintenance and wire pulling and feed through easy and convenient.
2.Is an economical convenience box
3.save time and money by eliminating costly bending of large conduits in order to change the directions of conduit runs.
4.They are a weatherproof installation , allow the installer to easily bend wires into the smooth turns.
