UL Standard Silvery Electrical Swivel Steel Pipe Clamps E489690
| Material: | Steel, Galvanised | Color: | Silvery |
| Standard: | UL | Size: | 1/2"-4" |
| Package: | Carton | Quality: | Quality Passed UL Cetification,Report Reference E489690 |
| High Light: | UL Standard Steel Pipe Clamps,Electrical Swivel Steel Pipe Clamps,E489690 Steel Pipe Clamps |
||

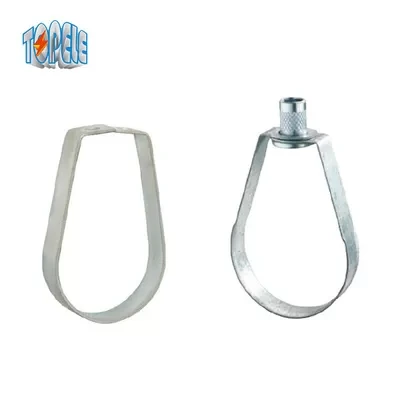

UL Standard Steel Electrical Swivel Pipe Clamp Swivel Loop
Description:
Swivel Loop Hanger
This galvanized steel loop hanger is recommended for suspension of stationary noninsulated pipelines. It features a retained insert nut that helps to keep the loop hanger and insert nut together. Swivel, heavy-duty adjustable band.
Surface finish:galvanized
Size: 1/2"-8"
Quality:Quality passed UL cetification,Report reference E489690
Field Names: swivel ring hanger, sprinkler hanger, sprinkler nut clamp
General:
1) Electro galvanized Springier pipe hanger with thickness from 1.00mm to 2.00mm
2) Five to eight inch also available if ordered, but none-UL listed,the darcromat is the acid liquid testing more than 200 hours dip
3) As the clamp for emt conduit pipe to thread rod
4) Corresponding Code: RL-860
5) Stainless material conduit hanger available
Applications:
Used for tighting the emt conduit pipe to thread rod
Each strut clamp can stamp directly of the customer's brand
Ranlic strut clamp come with screw and nut
Standard thickness is 1.2mm,2.00mm available
Specifications:
| CAT# | SIZE |
| SLH-50 | 1/2" |
| SLH-75 | 3/4" |
| SLH-100 | 1" |
| SLH-125 | 1-1/4" |
| SLH-150 | 1-1/2" |
| SLH-200 | 2" |
| SLH-300 | 3" |
| SLH-400 | 4" |
| SLH-500 | 5" |
| SLH-600 | 6" |
| SLH-800 | 8" |
Clevis Hanger used in tunnels, culverts, pipes and other roof fixed, or for the suspension wires.Hanger clamps used of high-quality hot-rolled, the surface of silver-plated white zinc.The specially designed shape allows a lot of freedom in adjusting heights and the angle of support.
Installation:Hanger load nut clevis must be tightened securely to assure proper hanger performance. Punched forming holes may be present on certain sizes of this clevis hanger.These holes are solely for the purpose of manufacturing and do not affect the structural integrity or load carrying capacities of these hangers.
