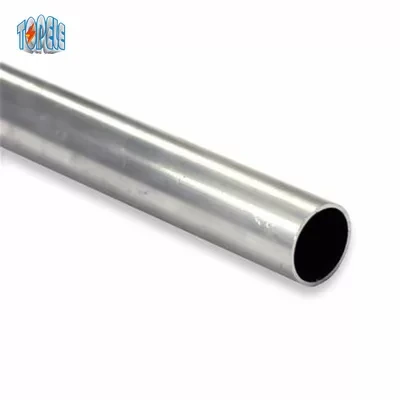

Hot Dipped Galvanized Electrical EMT Conduit Steel Pipe Metallic

Hot Dipped Galvanized Electrical EMT Conduit Steel Pipe Metallic
Hot Dipped Galvanized Electrical EMT Conduit Steel Pipe Metallic

Large Image :  Hot Dipped Galvanized Electrical EMT Conduit Steel Pipe Metallic

Product Details:
Place of Origin: Zhejiang ,china
Brand Name: TOPELE
Certification: ISO CERTIFICATE
Model Number: EMT ALUMINUM CONDUIT
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: negotiable
Packaging Details: Small bundles with white plastic bag
Delivery Time: 20 days for one 20ft container
Payment Terms: TT/LC AT SIGHT
Supply Ability: 200 tons one month
Detailed Product Description
Material: Steel Surface Treatment: Pre-Galvanized/hot Dip Galvanized
Length: 10 Ft Type: Electrical Pipe
Thickness: 0.85-2.11mm Size: 1/2-4 Inch
Standard: UL797
High Light:

Hot Dipped Galvanized Conduit Steel Pipe

,

Hot Dipped Galvanized Electrical Metallic Tubing

,

EMT Conduit Pipe Metallic

Galvanized Electrical Metallic Tubing EMT Conduit Steel Pipe

Electrical Galvanized Steel Pipe Electrical Metallic Tubing (EMT)



Description:



ANSI C80.3-1983 Electrical Pre-galvanized /Hot-dipped Galvanized EMT Conduit Pipe

 EMT conduit pipe is one of the lightest and thinnest threading pipe in American standard. The pipe head has no thread, and it is connected with set screw type connector which is mostly used in indoor decoration

  • The main markets of EMT Aluminum conduit  are Latin America, South America, America, dubai and other middle eastern countries
  • Corrosion resistance
  • long-lasting protection
  • Approximately one-third the weight of steel, light weight.
  • 10' lenghts, with special lenght available
  • Easy to Install – Can be easily cut, bend without special tools

EMT conduit pipe and accessories /UL797 EMT conduit pipe

C80.3 UL797 Emt'tubing Electrical Conduit
Material: Pre-galvanized Q195
Size: 1/2" to 4"



Applications:



TOPELE EMT  Aluminum conduit is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This EMT CONDUIT is made of aluminum alloy, it has a strong corrosion resistance,and light weught help people wasy to intall.





Specifications:

  • Standard: 1/2"-4" EMT ALUMINUM  CONDUIT X 10'  / UL797&C80.3-1983
  • Brand Name: TOPELE
  • Color Family : Metallics
  • Conduit type : Metallic
  • Type : Conduit
  • Flexible : No
  • Length : 10 ft.
  • Material : aluminum
  • Size: from 1/2" to 4 "



Nominal diameter External diameter Wall Thickness Length Packing Weight/Unit(kg)

1. EMT Tube(Electrical metallic tubing) standard pipe
1/2" 17.93mm 1.07mm 3.05m 20pcs/bundle 1.36
3/4" 23.42mm 1.24mm 3.05m 15pcs/bundle 2.07
1" 29.54mm 1.45mm 3.05m 10pcs/bundle 3.06
1-1/4" 38.35mm 1.60mm 3.05m 5pcs/bundle 4.56
1-1/2" 44.2mm 1.65mm 3.05m 5pcs/bundle 5.28
2" 55.8mm 1.65mm 3.05m 5pcs/bundle 6.78
2-1/2" 73.03mm 1.83mm 3.05m 1pcs/bundle 9.8
3" 88.9mm 1.83mm 3.05m 1pc 11.98
3-1/2" 101.6mm 2.11mm 3.05m 1pc 15.79
4" 114.3mm 2.11mm 3.05m 1pc 17.8



Nominal diameter External diameter Thickness of wall Length Packing Weight/Unit(kg)
EMT Tube - thin wall thickness pipe
1/2" 17.93mm 0.85mm 3.05m 20pcs/bundle 1.092
3/4" 23.42mm 1mm 3.05m 15pcs/bundle 1.499
1" 29.54mm 1.1mm 3.05m 10pcs/bundle 2.353
1-1/4" 38.35mm 1.30mm 3.05m 5pcs/bundle 3.623
1-1/2" 44.2mm 1.30mm 3.05m 5pcs/bundle 4.195
2" 55.8mm 1.40mm 3.05m 5pcs/bundle 5.728




Advantage

Price: Aluminum EMT is 30% lower than Steel.

Weight: Aluminum EMT is 70% lighter than Steel.

Installation: Aluminum EMT is 50% Less than Steel.

Surface Treatment: Aluminum EMT can be used with/without Oxidation, Steel must be galvanized, Poisonous and Pollutional.



Hot Dipped Galvanized Electrical EMT Conduit Steel Pipe Metallic 0



Our service



1,Safe Product.

Our conduit is safe, easy to install, with wide production range, and has shielding performance, anti-jamming performance, fire prevention and many other good performance. It is the preferred wire pulling material of modern building.



2,Good Raw Material.

Our conduit is processed by high-quality hot dipped galvanized coil, with zinc layer thickness more than 120G / M², which extends the life of the conduit. Zinc coating is well-distributed, good finished with smooth surface, without black spots and bubbles, and has strong corrosion resistance. It is suitable for wires protect installation of lighting and machinery equipment in wet, corrosive harsh environment. Higher-quality products can be customized according to customer’s requirements.



3,Good Weld Line.

Weld line is smooth, and the height of inner weld line does not exceed 0.3 mm, which keep the conduit suitable for wire pulling and no damage to the wires.



4,Clean End of the Conduit.

The end of our conduit is cut off squarely and cleaned without any burrs and sharp edges, which will not damage the wire.



5,Perfect Inspection Process.

Our company has a perfect product inspection process to ensure that products we offer you are qualified.



6,Withstand a variety of tests.

Our products have a perfect performance in the threading test, zinc layer testing, stamping tests, bending tests and other physical and chemical tests.



Hot Dipped Galvanized Electrical EMT Conduit Steel Pipe Metallic 1
