Flexible Conduit And Fittings Squeeze Connector Electrical Tubing Connectors
| Material: | Zinc Die-cast | Size: | 1/2â€â€”4†|
| Product Name: | Flexible Conduit And Fittings | Field Names: | Squeeze Straight Connector,ect. |
| Type: | 45/90 Degree Type, Straight Type | OEM: | YES |
| Shape: | Squeeze Connector With Screw | ||
| High Light: | flexible metal conduit fittings,corrugated flexible conduit |
||
Flexible Conduit And Fittings Squeeze Connector Electrical Tubing Connectors
Quick Detail:

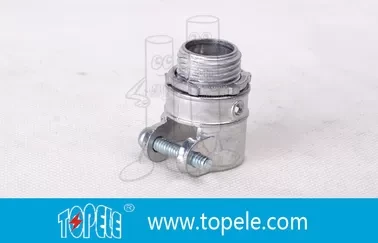

Squeeze Connectors- straight
Material: Zinc Die-cast
Size: 1/2”—4”
Field Names:
quick-snap connector, flex connector, flex metal conduit connector, BX connector, snap in MC cable
connector. Squeeze straight connector
Applications:
These TOPELE quick connectors are used to connect flexible metal conduits to boxes, enclosures, lighting fixtures and other appliances. Available in a variety of styles, straight and 90°, they can be screwed into
flexiblemetal conduits or clamped on the outside of jackets.
Specifications:
|
Part number |
Size
|
|
SSC-38 |
3/8” |
|
SSC-50 |
1/2” |
|
SSC-75 |
3/4” |
|
SSC-100 |
1” |
|
SSC-125 |
1-1/4” |
|
SSC-150 |
1-1/2” |
|
SSC-200 |
2” |
Advantage:
Topele’s unique patented design has built-in locking ridges and spring steel pressure clips that eliminate the need to use standard locknuts on the inside of boxes to secure conduit fittings. They quickly snap in place on knockout openings in seconds. Their smooth, inner-throat surface ensures that wires will not be skinned or cut by any sharp edges as they are pulled through fittings. Additionally, these fittings may be installed without removing box covers or light-fixture canopies.
Competitive Advantage:
+Quick Delivery: 30 days for one 20ft container.
+Competitive Price
+ Good Quality: ISO certificate approval+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
