    Product Name: EMT Conduit Fittings Material: Steel /Zinc Electroplated
    Fitting Type: Connector Indoor/Outdoor: Indoor
    Size: 0.5 Inch-4 Inch Federal Spec: W-F-408E
    High Light:

    liquid tight flexible conduit

    ,

    electrical conduits and fittings

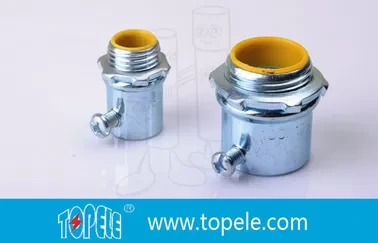

    Steel Die Cast Zinc Plated EMT Conduit And Fittings / Insulated Connector




    Description:


    EMT steel Connector

    TOPELE steel emt connectors are used to bond EMT conduit to electrical junction boxes or enclosures. TOPELE EMT steel connectors provide concrete tight connections when taped and properly secured with the included locknut, and are rated for electrical applications above 600 volts. Their heavy gauge steel construction maintains mechanical protection and solid grounding of the conduit to the designated electrical junction box or enclosure. Additionally, EMT conduit connectors are pure steel and zinc plated for excellent corrosion protection.




    Features:


    Heavy steel walls
    Concretetight when taped
    Pre-set/ Pre-staked set screws
    Male hub threads NPT
    Available with insulated threat
    Three-way combination screws for flat-blade, and square head screwsdrives 1/2" through 2"
    Slotted hexhead screw 2-1/2" through 4"
    2-1/2" through  4" rated for threadless aluminum RMC and steel IMC.
    Material/Finish: Steel /Zinc electroplated
    CSA standard:C22.2 No. 18
    NEMA: FB-1
    Federal Spec: W-F-408E





    Applications:


    EMT steel connector: Joins steel EMT conduit to Electrical box and enclosure
    •Connect & effectively bond EMT conduit to steel outlet boxes, load centers & other metal enclosures
    •May be used indoors and in concrete-tight applications when taped
    •Body and locknut made with die-cast zinc alloy
    •Set screw made with zinc-plated steel
    •Tri-Drive screw head design for use with Phillips, slotted and square screwdrivers
    •Screw thread is designed to not vibrate loose
    •Reversible locknut designed to cut through protective coatings on boxes & enclosures
    •Application type : EMT
    •Electrical Product Type : Standard Fitting
    •Fitting type : Connector
    •Indoor/Outdoor : Indoor
    •Paintable/Stainable : No
    •Trade Size (in.) : [1/2"] [3/4"] [1"] [1-1/4"] [1-1/2"] [2"][2-1/2"] [3"] [4"]






    Specifications:

    SSCN-50/S

    1/2"

    Set-Screw Type

    SSCN-75/S

    3/4"

    Set-Screw Type

    SSCN-100/S

    1"

    Set-Screw Type

    SSCN-125/S

    1-1/4"

    Set-Screw Type

    SSCN-150/S

    1-1/2"

    Set-Screw Type

    SSCN-200/S

    2"

    Set-Screw Type

    SSCN-250/S

    2-1/2"

    Set-Screw Type

    SSCN-300/S

    3"

    Set-Screw Type

    SSCN-400/S

    4"

    Set-Screw Type

     Steel Die Cast Zinc Plated EMT Conduit And Fittings / Insulated Connector 0 Steel Die Cast Zinc Plated EMT Conduit And Fittings / Insulated Connector 1




    Competitive Advantage:


    +Quick Delivery: within 30 days for one 20ft container.
    +Competitive Price
    + Good Quality: ISO certificate approval
    +Best Service: fast delivery, strong package, good price, timely and effective communication
    +Powerful Solution: fast and effective solution to problem
